Description
General part information

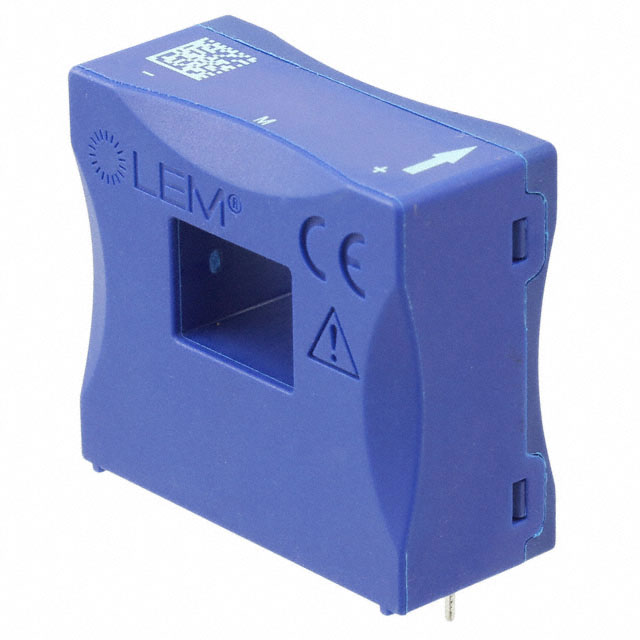

LA 130-P
Current Sensor 130A 1 Channel Hall Effect, Closed Loop Bidirectional Module, Single Pass Through
Technical Specifications
Parameters and characteristics for this part
| Specification | LA 130-P |
|---|---|
| Accuracy | 0.5 % RH |
| Current - Sensing | 130 A |
| Current - Supply (Max) | 140 mA |
| For Measuring | AC, DC |
| Linearity Tolerance | 1 % |
| Maximum Frequency | 150 kHz |
| Minimum Frequency | DC |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Current, Ratiometric |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Response Time | 0.5 µs |
| Sensor Type | Hall Effect, Closed Loop |
| Voltage - Supply (Maximum) | 15 V |
| Voltage - Supply (Minimum) | -12 V |
