CPDQC3V3AU-HF

Active

Comchip Technology

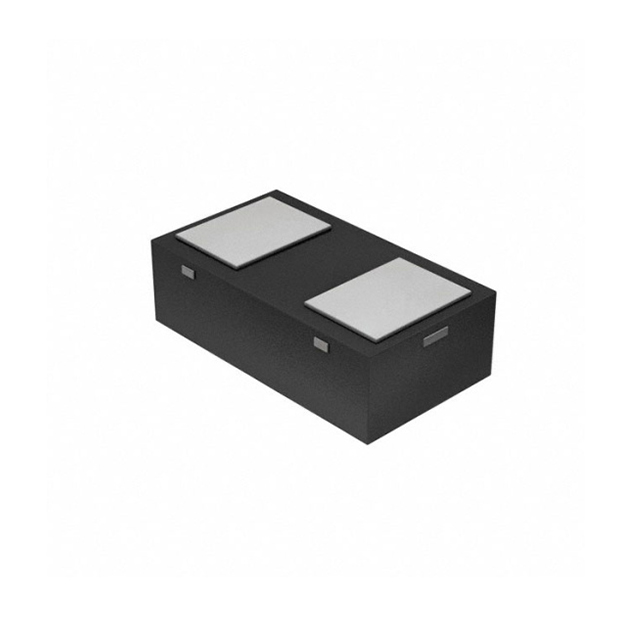

TVS DIODE 3.3VWM 14VC 0402C

Search across all available documentation for this part.

Active

Comchip Technology

TVS DIODE 3.3VWM 14VC 0402C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14V Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount 0402C/SOD-923F

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	CPDQC3V3AU-HF	CPDQC3 Series

Applications	General Purpose	General Purpose
Bidirectional Channels	-	1
Capacitance @ Frequency	0.4 pF	0.2 - 20 pF
Current - Peak Pulse (10/1000µs)	4 A	4 - 17 A
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 ¯C	125 - 150 ¯C
Operating Temperature [Min]	-55 °C	-55 - -40 °C
Package / Case	0402 (1006 Metric)	0402 (1006 Metric)
Power - Peak Pulse	56 W	36 - 180 W
Power Line Protection	False	False, True
Supplier Device Package	0402C, SOD-923F	0402C, SOD-923F
Type	Zener	Zener
Unidirectional Channels [custom]	1	1
Voltage - Breakdown (Min) [Min]	4.2 V	3.6 - 5 V
Voltage - Clamping (Max) @ Ipp [Max]	14 V	6.2 - 25 V
Voltage - Reverse Standoff (Typ)	3.3 V	3.3 V

TVS DIODE 3.3VWM 14VC 0402C

Part	Type	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Reverse Standoff (Typ)	Unidirectional Channels [custom]	Capacitance @ Frequency	Power - Peak Pulse	Applications	Current - Peak Pulse (10/1000µs)	Supplier Device Package	Voltage - Breakdown (Min) [Min]	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Bidirectional Channels [custom]
Comchip Technology CPDQC3V3AU-HF	Zener	14 V	3.3 V	1	0.4 pF	56 W	General Purpose	4 A	0402C, SOD-923F	4.2 V	Surface Mount	0402 (1006 Metric)	125 ¯C	-55 °C
Comchip Technology CPDQC3V3R-HF	Zener	18 V	3.3 V		18 pF	36 W	General Purpose		0402C, SOD-923F	5 V	Surface Mount	0402 (1006 Metric)	150 °C	-55 °C	1
Comchip Technology CPDQC3V3A-HF	Zener	25 V	3.3 V		0.2 pF	100 W	General Purpose	4 A	0402C, SOD-923F	4.5 V	Surface Mount	0402 (1006 Metric)	125 ¯C	-55 °C	1
Comchip Technology CPDQC3V3T-HF	Zener	6.2 V	3.3 V		20 pF	180 W	General Purpose	17 A	0402C, SOD-923F	3.6 V	Surface Mount	0402 (1006 Metric)	125 ¯C	-40 °C	1
Comchip Technology CPDQC3V3C-HF	Zener	13 V	3.3 V		6 pF	65 W	General Purpose	5 A	0402C, SOD-923F	3.6 V	Surface Mount	0402 (1006 Metric)	125 ¯C	-55 °C	1
