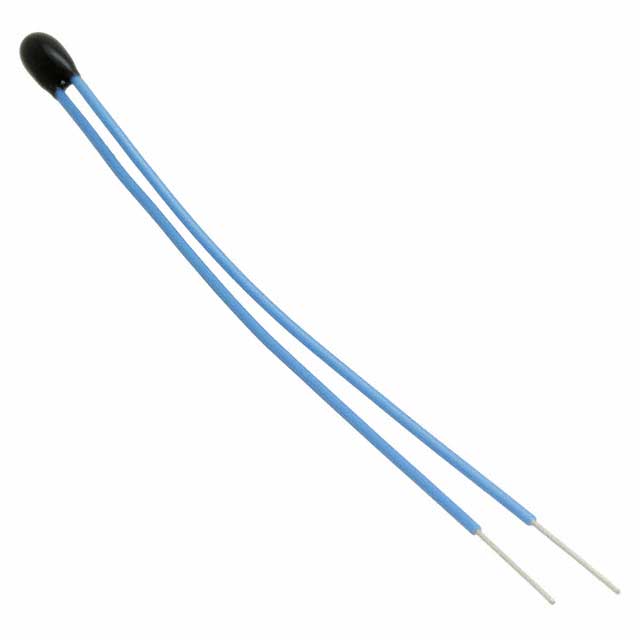

B57861S0503J040
ActiveEPCOS - TDK Electronics
THERMISTOR NTC 50KOHM 3760K BEAD
B57861S0503J040
ActiveEPCOS - TDK Electronics
THERMISTOR NTC 50KOHM 3760K BEAD
Description
General part information
B57861S0503J040
NTC Thermistor 50k Bead
Technical Specifications
Parameters and characteristics for this part
| Specification | B57861S0503J040 |
|---|---|
| B Value Tolerance | 1 % |
| Beta (B25/100) | 3760 K |
| Grade | Automotive |
| Mounting Type | Free Hanging |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Bead |
| Power - Max | 60 mW |
| Qualification | AEC-Q200 |
| Resistance (Ohms) | 50 kOhm |
| Resistance Tolerance (%) | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
