Description
General part information
YN36K00000S101

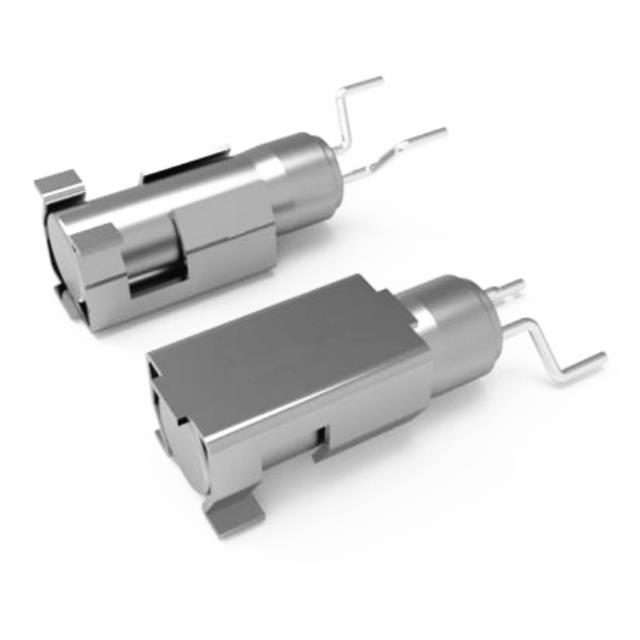

36 kHz ±10ppm Crystal 12.5pF 50 kOhms Cylindrical Can, Radial, Metal Lid
Technical Specifications
Parameters and characteristics for this part
| Specification | YN36K00000S101 |
|---|---|
| ESR (Equivalent Series Resistance) | 50 kOhm |
| Frequency | 36 kHz |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) | 0.087 in |
| Load Capacitance | 12.5 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Cylindrical Can, Metal Lid, Radial |
| Size / Dimension Diameter | 0.079 in |
| Size / Dimension Length | 0.236 in |
| Type | kHz Crystal (Tuning Fork) |
