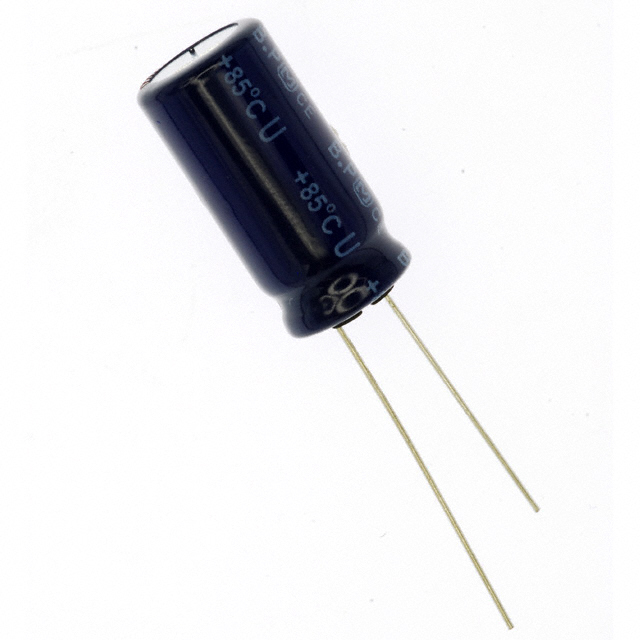

Specification	ECE-A1VN221UB

Applications	General Purpose
Capacitance	220 µF
Height - Seated (Max)	0.866 in
Lead Spacing	0.197 in
Lifetime	2000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can, Radial
Polarization	Bi-Polar
Ripple Current	360 mA, 612 mA
Size / Dimension Diameter	0.492 in
Tolerance	20 %
Voltage - Rated	35 V

ECE-A1 Series

...

Part	Tolerance	Applications	Voltage - Rated	Mounting Type	Package / Case	Lifetime	Operating Temperature (Min)	Operating Temperature (Max)	Polarization	Capacitance	Ripple Current	Lead Spacing	Height - Seated (Max)	Size / Dimension Diameter
Panasonic Electronic Components ECE-A1AKA220B	20 %	General Purpose	10 V	Through Hole	Can Radial	1000 Hrs	-40 °C	85 °C	Polar	22 µF	59.5 mA
Panasonic Electronic Components ECE-A1EN101UB	20 %	General Purpose	25 VAC	Through Hole	Can Radial	2000 Hrs	-40 °C	85 °C	Bi-Polar	100 µF	180 mA 306 mA	0.197 in	0.492 in	0.315 in
Panasonic Electronic Components ECE-A1HN101U	20 %	General Purpose	50 V	Through Hole	Can Radial	2000 Hrs	-40 °C	85 °C	Bi-Polar	100 µF	250 mA 425 mA	0.197 in	0.787 in	0.394 in
Panasonic Electronic Components ECE-A1AN222U	20 %	General Purpose	10 V	Through Hole	Can Radial	2000 Hrs	-40 °C	85 °C	Bi-Polar	2200 ĄF	1.173 A 690 mA	0.295 in	0.984 in	0.63 in
Panasonic Electronic Components ECE-A1VKS3R3I	20 %	General Purpose	35 V	Through Hole	Can Radial	1000 Hrs	-40 °C	85 °C	Polar	3.3 µF	16 mA	0.098 in	0.236 in	0.157 in
Panasonic Electronic Components ECE-A1EKS4R7	20 %	General Purpose	25 VAC	Through Hole	Can Radial	1000 Hrs	-40 °C	85 °C	Polar	4.7 µF	22 mA 37.4 mA	0.059 in	0.236 in	0.157 in
Panasonic Electronic Components ECE-A1EN4R7U	20 %	General Purpose	25 VAC	Through Hole	Can Radial	2000 Hrs	-40 °C	85 °C	Bi-Polar	4.7 µF	42.5 mA	0.079 in	0.472 in	0.197 in
Panasonic Electronic Components ECE-A1AKS220I	20 %	General Purpose	10 V	Through Hole	Can Radial	1000 Hrs	-40 °C	85 °C	Polar	22 µF	35 mA	0.098 in	0.236 in	0.197 in
Panasonic Electronic Components ECE-A1AKA101B	20 %	General Purpose	10 V	Through Hole	Can Radial	1000 Hrs	-40 °C	85 °C	Polar	100 µF	80 mA 136 mA	0.197 in	0.315 in	0.248 in
Panasonic Electronic Components ECE-A1EKS330I	20 %	General Purpose	25 VAC	Through Hole	Can Radial	1000 Hrs	-40 °C	85 °C	Polar	33 µF	65 mA	0.098 in	0.236 in	0.248 in
