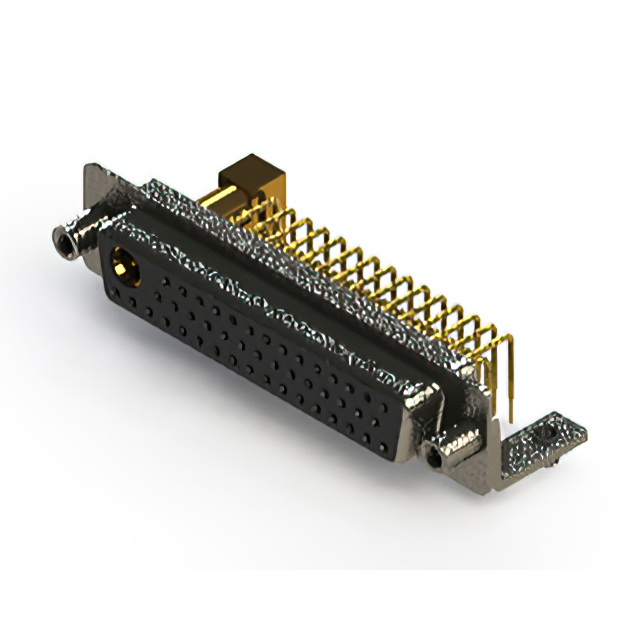

630-47W1640-5N5
ActiveEDAC Inc.
47P FEMALE RIGHT-ANGLE 3 PUSH-PULL D-SUB / VGA CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
630-47W1640-5N5
ActiveEDAC Inc.
47P FEMALE RIGHT-ANGLE 3 PUSH-PULL D-SUB / VGA CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 630-47W1640-5N5 |
|---|---|
| Backset Spacing | 9.4 mm |
| Backset Spacing | 0.37 in |
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal, Coax |
| Dielectric Material | Polyester Thermoplastic |
| Features | Board Lock, Mounting Brackets |
| Flange Feature | 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 47 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 5 (DD, D), 47W1 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
630-47W Series
...
| Part | Dielectric Material | Connector Type | Contact Type | Color | Number of Positions [custom] | Number of Positions | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Flange Feature | Backset Spacing | Backset Spacing | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Termination | Mounting Type | Material Flammability Rating | Connector Style | Current Rating (Amps) | Contact Material | Shell Size, Connector Layout | Features | Shell Material, Finish | Contact Finish Thickness | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Polyester Thermoplastic | Receptacle Female Sockets | Signal and Power | Black | 1 | 47 | 125 VDC | -55 °C | 125 °C | 3 | Housing/Shell (4-40) | 9.4 mm | 0.37 in | Gold | 0.76 Ám | 30 Áin | Solder | Through Hole Right Angle | UL94 V-0 | Combo D-Sub | 5 A 20 A | Copper Alloy | 47W1 5 (DD D) | ||||
EDAC Inc. | Polyester Thermoplastic | Receptacle Female Sockets | Coax Signal | Black | 47 | 125 VDC | -55 °C | 125 °C | 3 | 4-40 | 9.4 mm | 0.37 in | Gold | 0.76 Ám | 30 Áin | Solder | Through Hole Right Angle | UL94 V-0 | Combo D-Sub | Copper Alloy | 47W1 5 (DD D) | Board Lock Mounting Brackets | Nickel Plated Steel | ||||
EDAC Inc. | Polyester Thermoplastic | Receptacle Female Sockets | Signal and Power | Black | 1 | 47 | 125 VDC | -55 °C | 125 °C | 3 | M3 | 9.4 mm | 0.37 in | Gold | Solder | Through Hole Right Angle | UL94 V-0 | Combo D-Sub | Copper Alloy | 47W1 5 (DD D) | Mounting Brackets | Flash | 10A 5A | ||||
EDAC Inc. | Polyester Thermoplastic | Receptacle Female Sockets | Signal and Power | Black | 1 | 47 | 125 VDC | -55 °C | 125 °C | 3 | Housing/Shell (4-40) | 9.4 mm | 0.37 in | Gold | Solder | Through Hole Right Angle | UL94 V-0 | Combo D-Sub | Copper Alloy | 47W1 5 (DD D) | Board Lock Mounting Brackets | Nickel Plated Steel | Flash | 10A 5A | |||
EDAC Inc. | Polyester Thermoplastic | Receptacle Female Sockets | Signal and Power | Black | 1 | 47 | 125 VDC | -55 °C | 125 °C | 3 | Housing/Shell (4-40) | 9.4 mm | 0.37 in | Gold | 0.76 Ám | 30 Áin | Solder | Through Hole Right Angle | UL94 V-0 | Combo D-Sub | 5 A 20 A | Copper Alloy | 47W1 5 (DD D) | Mounting Brackets | |||
EDAC Inc. | Polyester Thermoplastic | Receptacle Female Sockets | Coax Signal | Black | 47 | 125 VDC | -55 °C | 125 °C | 3 | M3 | 9.4 mm | 0.37 in | Gold | Solder | Through Hole Right Angle | UL94 V-0 | Combo D-Sub | Copper Alloy | 47W1 5 (DD D) | Mounting Brackets | Nickel Plated Steel | Flash | |||||
EDAC Inc. | Polyester Thermoplastic | Receptacle Female Sockets | Coax Signal | Black | 47 | 125 VDC | -55 °C | 125 °C | 3 | Housing/Shell (4-40) | 9.4 mm | 0.37 in | Gold | Solder | Through Hole Right Angle | UL94 V-0 | Combo D-Sub | Copper Alloy | 47W1 5 (DD D) | Mounting Brackets | Flash | ||||||
EDAC Inc. | Polyester Thermoplastic | Receptacle Female Sockets | Coax Signal | Black | 47 | 125 VDC | -55 °C | 125 °C | 3 | 4-40 | 9.4 mm | 0.37 in | Gold | Solder | Through Hole Right Angle | UL94 V-0 | Combo D-Sub | Copper Alloy | 47W1 5 (DD D) | Flash | |||||||
EDAC Inc. | Polyester Thermoplastic | Receptacle Female Sockets | Coax Signal | Black | 47 | 125 VDC | -55 °C | 125 °C | 3 | 4-40 | 9.4 mm | 0.37 in | Gold | 0.76 Ám | 30 Áin | Solder | Through Hole Right Angle | UL94 V-0 | Combo D-Sub | Copper Alloy | 47W1 5 (DD D) | Nickel Plated Steel | |||||
EDAC Inc. | Polyester Thermoplastic | Receptacle Female Sockets | Coax Signal | Black | 47 | 125 VDC | -55 °C | 125 °C | 3 | M3 | 9.4 mm | 0.37 in | Gold | Solder | Through Hole Right Angle | UL94 V-0 | Combo D-Sub | Copper Alloy | 47W1 5 (DD D) | Mounting Brackets | Nickel Plated Steel | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
630-47W Series
47 (46 + 1 Coax) Position D-Sub, Combo Receptacle, Female Sockets Connector
