Description
General part information

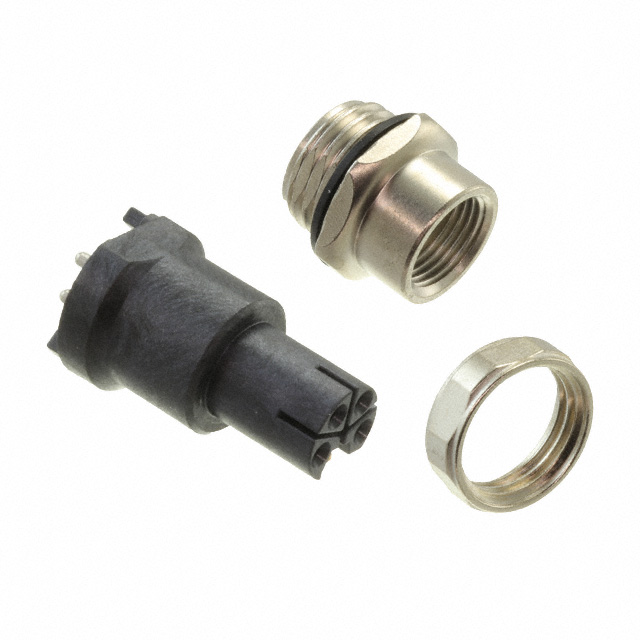

21033962531
5 (4 Power + FE) Position Circular Connector Plug, Female Sockets and Male Pins Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 21033962531 |
|---|---|
| Color | Silver |
| Connector Type | Male Pins, Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating | 16 A |
| Fastening Type | Threaded |
| Features | Board Guide |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Insert Material | PA, Nylon, Polyamide |
| Mounting Feature | Rear Side Nut, Bulkhead |
| Mounting Type | Panel Mount, Through Hole |
| Number of Positions | 5 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | L |
| Position Types | FE, Power |
| Primary Material | Metal |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M12-5 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 63 V |
