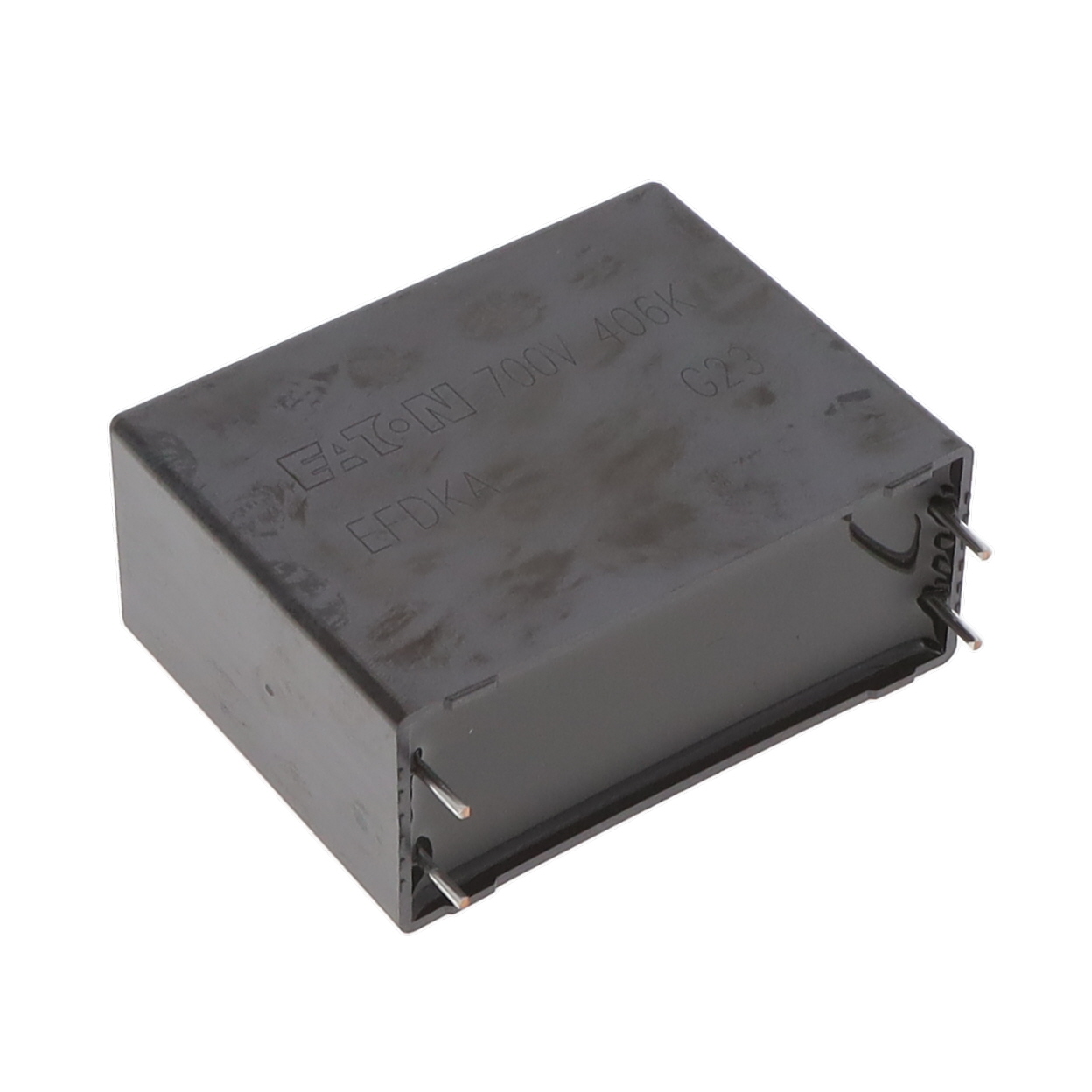

EFDKA70K406F014BH
ActiveEaton - Electronics Division
CAP FILM 40UF 10% 700VDC RAD
EFDKA70K406F014BH
ActiveEaton - Electronics Division
CAP FILM 40UF 10% 700VDC RAD
Description
General part information
EFDKA70K406F014BH
40 µF Film Capacitor 700V Polypropylene (PP), Metallized Radial - 4 Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | EFDKA70K406F014BH |
|---|---|
| Applications | DC Filtering, DC Link, Automotive |
| Capacitance | 40 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 8 mOhm |
| Height - Seated (Max) | 1.811 in |
| Lead Spacing | 2.067 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package Leads | 4 Leads |
| Package Name | Radial |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 2.264 in |
| Size / Dimension Width | 0.984 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - DC | 700 VDC |
