RJE7G5AA141111
ActiveAmphenol ICC (Commercial Products)
2X RJ45 10P10C, PLATING GOLD 50U
RJE7G5AA141111
ActiveAmphenol ICC (Commercial Products)
2X RJ45 10P10C, PLATING GOLD 50U
Description
General part information
RJE7G5AA141111

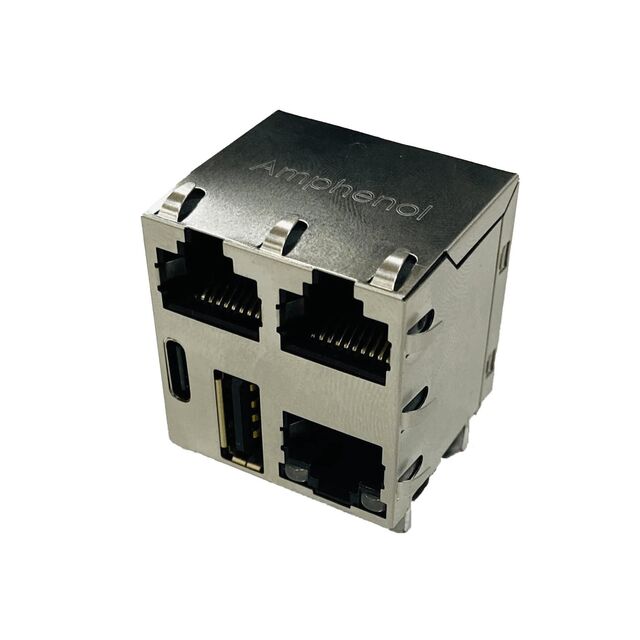

Jack Modular Connector 10p10c (RJ50) 90° Angle (Right) Shielded, EMI Finger Cat3, Cat5
Technical Specifications
Parameters and characteristics for this part
| Specification | RJE7G5AA141111 |
|---|---|
| Connector Type | Jack with USB A, USB C, RJ50 |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| LED Color | Yellow - Green |
| Mounting Type | Through Hole |
| Number of Contacts | 10 |
| Number of Ports | 3 |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Orientation Angle | 90 ° |
| Orientation Direction | Right |
| Ratings | Cat5, Cat3 |
| Shielding | EMI Finger, Shielded |
| Tab Direction | Down, Up |
| Termination | Solder |
