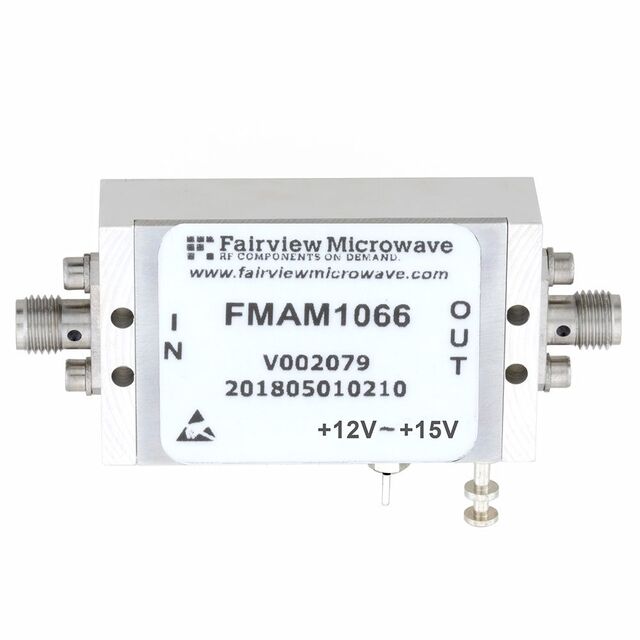

FMAM1066
ActiveFairview Microwave
LOWNOISEAMP 100MHZ-2GHZ P1DB SMA
FMAM1066
ActiveFairview Microwave
LOWNOISEAMP 100MHZ-2GHZ P1DB SMA
Description
General part information
FMAM1066
RF Amplifier IC General Purpose 100MHz ~ 2GHz
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAM1066 |
|---|---|
| Current - Supply | 170 mA |
| Frequency (Max) | 2 GHz |
| Frequency (Min) | 100 MHz |
| Gain | 61.5 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 2.5 dB |
| P1dB | 19 dBm |
| Package / Case | Module, SMA Connectors |
| RF Type | General Purpose |
| Voltage - Supply (Maximum) | 15 V |
| Voltage - Supply (Minimum) | 11 VDC |
