Description

General part information

113060100518

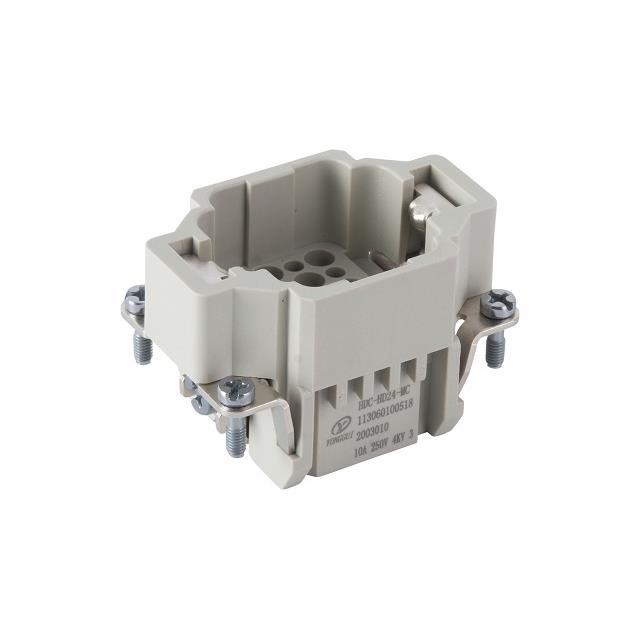

Male Insert without Contacts Gray 24+Ground Position Crimp

Technical Specifications

Parameters and characteristics for this part

Specification113060100518
ColorGray
Connector TypeInsert without Contacts
Current Rating10 A
GenderMale
Housing MaterialPC, Polycarbonate
Number of Positions24 pos
Operating Temperature (Max)125 °C
Operating Temperature (Min)-40 °C
Position TypesGround
Size6B
Termination StyleCrimp
Voltage Rating250 V
