Part	Fastening Type	Number of Positions	Overall Contact Length	Shrouding	Contact Length - Mating	Termination	Number of Rows	Insulation Material	Row Spacing - Mating	Contact Material	Mounting Type	Contact Type	Style	Material Flammability Rating	Contact Length - Post	Contact Shape	Contact Finish - Mating	Insulation Height	Number of Positions Loaded	Contact Finish Thickness - Mating	Pitch - Mating	Insulation Color	Connector Type	Contact Finish - Post	Applications	Contact Finish Thickness - Post

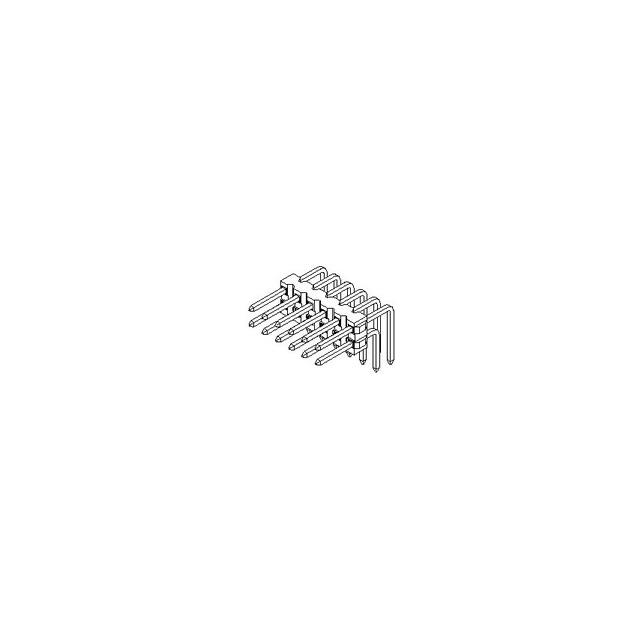

Molex 0010977245	Push-Pull	24 pos	0.52 in	Unshrouded	0.32 in	Solder	2	Glass Filled Liquid Crystal Polymer (LCP)	0.1 in	Copper Alloy	Through Hole	Male Pin	Board Board or Cable	UL94 V-0	0.11 in	Square	Tin	0.09 in	All	150 µin	0.1 in	Black	Breakaway Header	Tin	Automotive General Purpose Lighting Medical Telecommunications
Molex 0010977046	Push-Pull	4	0.52 in	Unshrouded	0.32 in	Solder	2	Glass Filled Liquid Crystal Polymer (LCP)	0.1 in	Copper Alloy	Through Hole	Male Pin	Board Board or Cable	UL94 V-0	0.11 in	Square	Gold	0.09 in	All	15 µin	0.1 in	Black	Breakaway Header	Tin	Automotive General Purpose Lighting Medical Telecommunications	74.8 µin
Molex 0010977186	Push-Pull	18	0.52 in	Unshrouded	0.32 in	Solder	2	Glass Filled Liquid Crystal Polymer (LCP)	0.1 in	Copper Alloy	Through Hole	Male Pin	Board Board or Cable	UL94 V-0	0.11 in	Square	Gold	0.09 in	All	15 µin	0.1 in	Black	Breakaway Header	Tin	Automotive General Purpose Lighting Medical Telecommunications	74.8 µin
Molex 0010977106	Push-Pull	10	0.52 in	Unshrouded	0.32 in	Solder	2	Glass Filled Liquid Crystal Polymer (LCP)	0.1 in	Copper Alloy	Through Hole	Male Pin	Board Board or Cable	UL94 V-0	0.11 in	Square	Gold	0.09 in	All	15 µin	0.1 in	Black	Breakaway Header	Tin	Automotive General Purpose Lighting Medical Telecommunications	74.8 µin
Molex 0010977125	Push-Pull	12	0.52 in	Unshrouded	0.32 in	Solder	2	Glass Filled Liquid Crystal Polymer (LCP)	0.1 in	Copper Alloy	Through Hole	Male Pin	Board Board or Cable	UL94 V-0	0.11 in	Square	Tin	0.09 in	All	150 µin	0.1 in	Black	Breakaway Header	Tin	Automotive General Purpose Lighting Medical Telecommunications
Molex 0010977145	Push-Pull	14	0.52 in	Unshrouded	0.32 in	Solder	2	Glass Filled Liquid Crystal Polymer (LCP)	0.1 in	Copper Alloy	Through Hole	Male Pin	Board Board or Cable	UL94 V-0	0.11 in	Square	Tin	0.09 in	All	150 µin	0.1 in	Black	Breakaway Header	Tin	Automotive General Purpose Lighting Medical Telecommunications
Molex 0010977345	Push-Pull	34	0.52 in	Unshrouded	0.32 in	Solder	2	Glass Filled Liquid Crystal Polymer (LCP)	0.1 in	Copper Alloy	Through Hole	Male Pin	Board Board or Cable	UL94 V-0	0.11 in	Square	Tin	0.09 in	All	150 µin	0.1 in	Black	Breakaway Header	Tin	Automotive General Purpose Lighting Medical Telecommunications
Molex 0010977806	Push-Pull	80	0.52 in	Unshrouded	0.32 in	Solder	2	Glass Filled Liquid Crystal Polymer (LCP)	0.1 in	Copper Alloy	Through Hole	Male Pin	Board Board or Cable	UL94 V-0	0.11 in	Square	Gold	0.09 in	All	15 µin	0.1 in	Black	Breakaway Header	Tin	Automotive General Purpose Lighting Medical Telecommunications	74.8 µin
Molex 0010977166	Push-Pull	16	0.52 in	Unshrouded	0.32 in	Solder	2	Glass Filled Liquid Crystal Polymer (LCP)	0.1 in	Copper Alloy	Through Hole	Male Pin	Board Board or Cable	UL94 V-0	0.11 in	Square	Gold	0.09 in	All	15 µin	0.1 in	Black	Breakaway Header	Tin	Automotive General Purpose Lighting Medical Telecommunications	74.8 µin
Molex 0010977366	Push-Pull	36	0.52 in	Unshrouded	0.32 in	Solder	2	Glass Filled Liquid Crystal Polymer (LCP)	0.1 in	Copper Alloy	Through Hole	Male Pin	Board Board or Cable	UL94 V-0	0.11 in	Square	Gold	0.09 in	All	15 µin	0.1 in	Black	Breakaway Header	Tin	Automotive General Purpose Lighting Medical Telecommunications	74.8 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Packaging Design Drawing

Product Specification

Drawing

Application Specification
