11153
ActiveKeystone Electronics
CONN PC PIN CIRC 0.040DIA TIN
11153
ActiveKeystone Electronics
CONN PC PIN CIRC 0.040DIA TIN
Description
General part information
11153

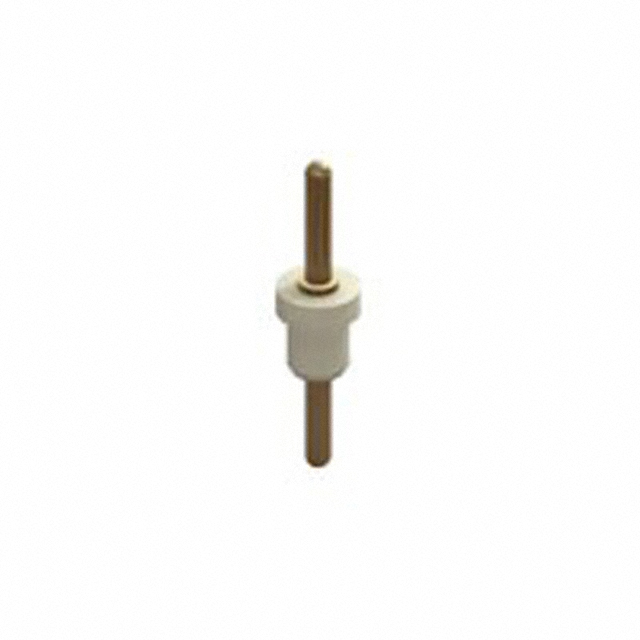

PC Pin Terminal Connector Through Hole Tin 0.040" (1.02mm) Dia
Technical Specifications
Parameters and characteristics for this part
| Specification | 11153 |
|---|---|
| Board Thickness | 0.062 in |
| Contact Finish | Tin |
| Contact Material | Brass |
| Flange Diameter | 0.125 in |
| Insulation | Insulated |
| Insulation Color | White |
| Length - Above Flange | 0.21 in |
| Length - Below Flange | 0.193 in |
| Length - Overall | 0.443 in |
| Material - Insulation | PTFE, Polytetrafluoroethylene |
| Mounting Hole Diameter | 0.086 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange (Diameter) | 0.04 in |
| Pin Size - Below Flange Diameter | 0.04 inches |
| Terminal Style | Double End |
| Terminal Type | PC Pin |
| Termination | Press-Fit |
