796681-9

Active

TE Connectivity AMP Connectors

TERM BLK 9POS SIDE ENTRY 5MM PCB

Deep-Dive with AI

Search across all available documentation for this part.

796681-9

Active

TE Connectivity AMP Connectors

TERM BLK 9POS SIDE ENTRY 5MM PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.99
		10	$ 3.49
		25	$ 3.40
		50	$ 3.33
		100	$ 3.22

Description

General part information

796681 Series

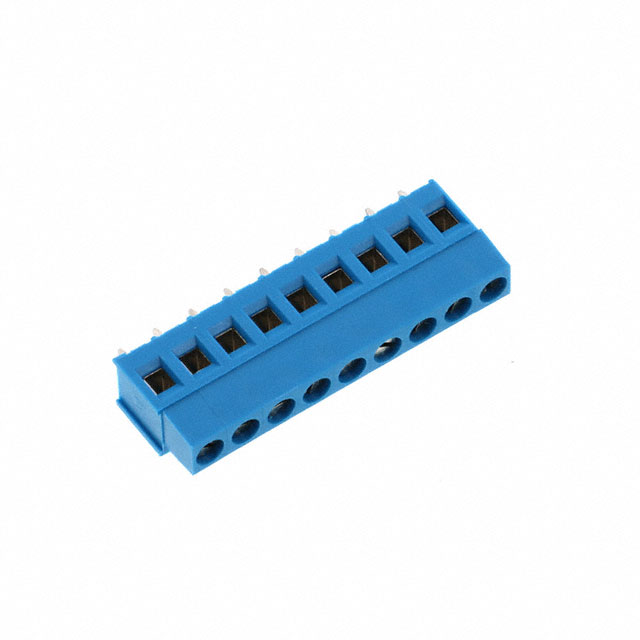

9 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	796681-9	796681 Series

Clamp Material - Plating	Brass - Nickel Plated	Brass - Nickel Plated
Color	Blue	Blue
Contact Material - Plating [custom]	Brass - Tin Plated	Brass - Tin Plated
Current	17.5 A	17.5 A
Features	Interlocking (Side)	Interlocking (Side)
Mating Orientation	Horizontal with Board	Horizontal with Board
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Positions Per Level	9	2 - 12
Screw Material - Plating	Brass - Nickel Plated	Brass - Nickel Plated
Screw Thread	M3	M3
Torque - Screw	0.79 Nm	0.79 Nm
Torque - Screw	7 Lb-In	7 Lb-In
Voltage	300 V	300 V
Wire Gauge [Max]	30 AWG	30 AWG
Wire Gauge [Min]	12 AWG	12 AWG
Wire Termination	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp

796681 Series

TERM BLK 3POS SIDE ENTRY 5MM PCB

Part	Color	Torque - Screw	Torque - Screw	Number of Levels	Features	Mating Orientation	Positions Per Level	Mounting Type	Current	Contact Material - Plating [custom]	Screw Material - Plating	Wire Termination	Wire Gauge [Max]	Wire Gauge [Min]	Pitch [x]	Pitch [x]	Voltage	Clamp Material - Plating	Screw Thread
TE Connectivity AMP Connectors 796681-3	Blue	0.79 Nm	7 Lb-In	1	Interlocking (Side)	Horizontal with Board	3	Through Hole	17.5 A	Brass - Tin Plated	Brass - Nickel Plated	Screw - Rising Cage Clamp	30 AWG	12 AWG	5 mm	0.197 in	300 V	Brass - Nickel Plated	M3
TE Connectivity AMP Connectors 1-796681-2	Blue	0.79 Nm	7 Lb-In	1	Interlocking (Side)	Horizontal with Board	12	Through Hole	17.5 A	Brass - Tin Plated	Brass - Nickel Plated	Screw - Rising Cage Clamp	30 AWG	12 AWG	5 mm	0.197 in	300 V	Brass - Nickel Plated	M3
TE Connectivity AMP Connectors 796681-6	Blue	0.79 Nm	7 Lb-In	1	Interlocking (Side)	Horizontal with Board	6	Through Hole	17.5 A	Brass - Tin Plated	Brass - Nickel Plated	Screw - Rising Cage Clamp	30 AWG	12 AWG	5 mm	0.197 in	300 V	Brass - Nickel Plated	M3
TE Connectivity AMP Connectors 796681-5	Blue	0.79 Nm	7 Lb-In	1	Interlocking (Side)	Horizontal with Board	5	Through Hole	17.5 A	Brass - Tin Plated	Brass - Nickel Plated	Screw - Rising Cage Clamp	30 AWG	12 AWG	5 mm	0.197 in	300 V	Brass - Nickel Plated	M3
TE Connectivity AMP Connectors 796681-2	Blue	0.79 Nm	7 Lb-In	1	Interlocking (Side)	Horizontal with Board	2	Through Hole	17.5 A	Brass - Tin Plated	Brass - Nickel Plated	Screw - Rising Cage Clamp	30 AWG	12 AWG	5 mm	0.197 in	300 V	Brass - Nickel Plated	M3
TE Connectivity AMP Connectors 796681-9	Blue	0.79 Nm	7 Lb-In	1	Interlocking (Side)	Horizontal with Board	9	Through Hole	17.5 A	Brass - Tin Plated	Brass - Nickel Plated	Screw - Rising Cage Clamp	30 AWG	12 AWG	5 mm	0.197 in	300 V	Brass - Nickel Plated	M3
TE Connectivity AMP Connectors 796681-4	Blue	0.79 Nm	7 Lb-In	1	Interlocking (Side)	Horizontal with Board	4	Through Hole	17.5 A	Brass - Tin Plated	Brass - Nickel Plated	Screw - Rising Cage Clamp	30 AWG	12 AWG	5 mm	0.197 in	300 V	Brass - Nickel Plated	M3
