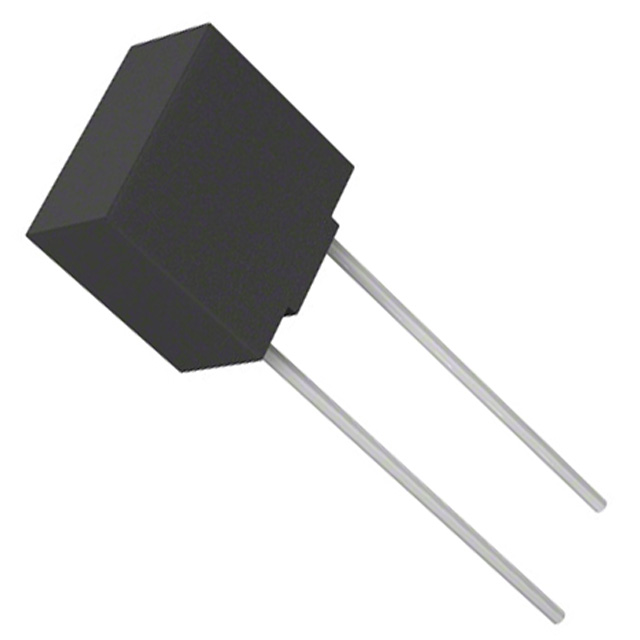

SS-5-4A-BK
ActiveEaton - Electronics Division
FUSE BOARD MNT 4A 250VAC RADIAL
SS-5-4A-BK
ActiveEaton - Electronics Division
FUSE BOARD MNT 4A 250VAC RADIAL
Description
General part information
SS-5-4A-BK
4 A 250 V AC DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Radial, Box
Technical Specifications
Parameters and characteristics for this part
| Specification | SS-5-4A-BK |
|---|---|
| Approval Agency | SEMKO, CQC, EK-MARK, cULus, VDE |
| Breaking Capacity | 40 A |
| Current Rating | 4 A |
| DC Cold Resistance | 0.01275 Ohms |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 87 |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Box |
| Response Time | Slow Blow |
| Size / Dimension Height | 0.329 in |
| Size / Dimension Length | 0.335 in |
| Size / Dimension Width | 0.169 in |
| Voltage Rating - AC | 250 V |
