82400-4-RG

Active

O.C. White Co.

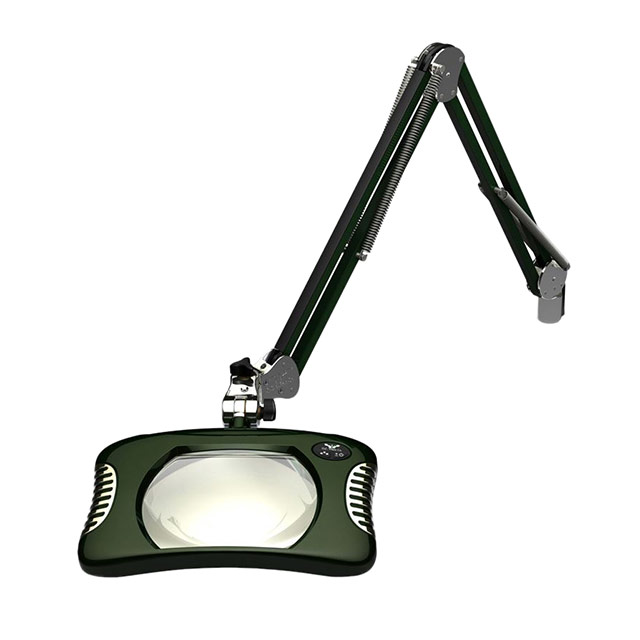

LAMP MAGNIFIER LED CLAMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

82400-4-RG

Active

O.C. White Co.

LAMP MAGNIFIER LED CLAMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 599.00

Description

General part information

82400 Series

Lamp, Magnifier 4 Diopter (2x), 7.00" L x 5.25" W (177.80mm x 133.35mm) LED, White

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	82400-4-RG	82400 Series

Arm [x]	43 in	43 in
Arm [x]	1092.2 mm	1092.2 mm
Bulb	LED, White	LED, White, White, UV, LED
Bulb	-	365 nm
Color	Green	Red, Black, Blue, Green, Silver, White, Dark Gray
Cord Length	NEMA 5-15P	NEMA 5-15P
Cord Length	1.83 m	1.83 m
Cord Length	6 '	6 '
Lamp/Magnifier Type	Lamp, Magnifier	Lamp, Magnifier
Lens Style/Size	4 Diopter	4 Diopter
Lens Style/Size [x]	177.8 mm	177.8 mm
Lens Style/Size [x]	7 "	7 "
Lens Style/Size [y]	5.25 "	5.25 "
Lens Style/Size [y]	133.35 mm	133.35 mm
Voltage [Max]	240 V	240 V
Voltage [Min]	100 V	100 V

82400 Series

LAMP MAGNIFIER LED CLAMP

Part	Bulb	Arm [x]	Arm [x]	Cord Length	Cord Length	Cord Length	Voltage [Max]	Voltage [Min]	Lamp/Magnifier Type	Lens Style/Size [y]	Lens Style/Size [y]	Lens Style/Size [x]	Lens Style/Size	Lens Style/Size [x]	Color	Bulb
O.C. White Co. 82400-4-BO	LED, White	43 in	1092.2 mm	NEMA 5-15P	1.83 m	6 '	240 V	100 V	Lamp, Magnifier	5.25 "	133.35 mm	177.8 mm	4 Diopter	7 "
O.C. White Co. 82400-4-BR	LED, White	43 in	1092.2 mm	NEMA 5-15P	1.83 m	6 '	240 V	100 V	Lamp, Magnifier	5.25 "	133.35 mm	177.8 mm	4 Diopter	7 "	Red
O.C. White Co. 82400-4-B	LED, White	43 in	1092.2 mm	NEMA 5-15P	1.83 m	6 '	240 V	100 V	Lamp, Magnifier	5.25 "	133.35 mm	177.8 mm	4 Diopter	7 "	Black
O.C. White Co. 82400-4-SB	LED, White	43 in	1092.2 mm	NEMA 5-15P	1.83 m	6 '	240 V	100 V	Lamp, Magnifier	5.25 "	133.35 mm	177.8 mm	4 Diopter	7 "	Blue
O.C. White Co. 82400-4-UV-B	LED, UV, White	43 in	1092.2 mm	NEMA 5-15P	1.83 m	6 '	240 V	100 V	Lamp, Magnifier	5.25 "	133.35 mm	177.8 mm	4 Diopter	7 "	Black	365 nm
O.C. White Co. 82400-4-RG	LED, White	43 in	1092.2 mm	NEMA 5-15P	1.83 m	6 '	240 V	100 V	Lamp, Magnifier	5.25 "	133.35 mm	177.8 mm	4 Diopter	7 "	Green
O.C. White Co. 82400-4-UV-SB	LED, UV, White	43 in	1092.2 mm	NEMA 5-15P	1.83 m	6 '	240 V	100 V	Lamp, Magnifier	5.25 "	133.35 mm	177.8 mm	4 Diopter	7 "	Blue	365 nm
O.C. White Co. 82400-4-S	LED, White	43 in	1092.2 mm	NEMA 5-15P	1.83 m	6 '	240 V	100 V	Lamp, Magnifier	5.25 "	133.35 mm	177.8 mm	4 Diopter	7 "	Silver
O.C. White Co. 82400-4-UV	LED, UV, White	43 in	1092.2 mm	NEMA 5-15P	1.83 m	6 '	240 V	100 V	Lamp, Magnifier	5.25 "	133.35 mm	177.8 mm	4 Diopter	7 "		365 nm
O.C. White Co. 82400-4-SW	LED, White	43 in	1092.2 mm	NEMA 5-15P	1.83 m	6 '	240 V	100 V	Lamp, Magnifier	5.25 "	133.35 mm	177.8 mm	4 Diopter	7 "	White
