BXRE-27G0400-A-23

Obsolete

BRIDGELUX

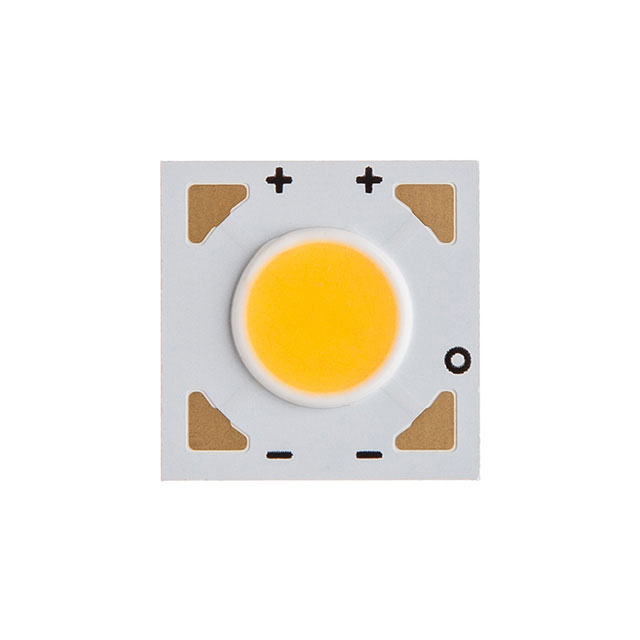

LED COB V6 ARRAY WM WHT SQ 2700K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRE-27G0400-A-23

Obsolete

BRIDGELUX

LED COB V6 ARRAY WM WHT SQ 2700K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BXRE-27G0400-A-23

CCT (K)	2700 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max [Max]	350 mA
Current - Test	175 mA
Height [z]	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	6.1 mm
Lumens/Watt @ Current - Test	102 lm/W
Luminous Flux @ Current/Temperature	320 lm
Size / Dimension [x]	12.5 mm
Size / Dimension [y]	12.5 mm
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	18 V

BXRE-27 Series

...

Part	Size / Dimension [x]	Size / Dimension [y]	Color	CCT (K)	Configuration	Luminous Flux @ Current/Temperature	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	Light Emitting Surface (LES) [diameter]	Viewing Angle	Current - Max [Max]	Height [z]	Type	Current - Test	Lens Type	Lumens/Watt @ Current - Test	Temperature - Test	Features
BRIDGELUX BXRE-27E0800-B-03	12.5 mm	12.5 mm	Warm White	2700 K	Square	705 lm	80	17.8 V	8.1 mm	120 °	700 mA	1.7 mm	Chip On Board (COB)	350 mA	Flat	113 lm/W
BRIDGELUX BXRE-27E2000-B-73	19 mm	19 mm	Warm White	2700 K	Square	2090 lm 2160 lm	80	33.9 V	14 mm	120 °	900 mA	1.7 mm	Chip On Board (COB)	450 mA	Flat	137 lm/W 142 lm/W	85 °C
BRIDGELUX BXRE-27E6500-D-72	28 mm	28 mm	Warm White	2700 K	Square	6635 lm	80	33.4 V	22.6 mm	120 °	2.8 A	1.7 mm	Chip On Board (COB)		Flat	142 lm/W	85 °C
BRIDGELUX BXRE-27G3001-D-23	21 mm	21 mm	Warm White	2700 K	Square	2520 lm	90	36 V	15.2 mm	120 °	1.4 A	1.7 mm	Chip On Board (COB)		Flat	100 lm/W
BRIDGELUX BXRE-27G65F0-C-83	28 mm	28 mm	Warm White	2700 K	Square	20808 lm	90	57 V	23.3 mm	120 °	2.7 A	1.65 mm	Chip On Board (COB)		Flat	135 lm/W	85 °C	Dimming
BRIDGELUX BXRE-27G4000-C-72	24 mm	24 mm	Warm White	2700 K	Square	4529 lm	90	34 V	19.2 mm	120 °	2.34 A	1.7 mm	Chip On Board (COB)		Flat	114 lm/W	85 °C
BRIDGELUX BXRE-27G1000-C-72			Warm White	2700 K	Square	1348 lm	90	33.8 V	10.2 mm	120 °	720 mA	1.7 mm	Chip On Board (COB)	360 mA	Flat	110 lm/W	85 °C
BRIDGELUX BXRE-27G40F0-C-83	24 mm	24 mm	Warm White	2700 K	Square	11157 lm	90	38 V	19.6 mm	120 °	2.16 A	1.65 mm	Chip On Board (COB)		Flat	136 lm/W	85 °C	Dimming
BRIDGELUX BXRE-27G4000-C-73	24 mm	24 mm	Warm White	2700 K	Square	4529 lm	90	34 V	19.2 mm		2.34 A	1.7 mm	Chip On Board (COB)		Flat	114 lm/W	85 °C
BRIDGELUX BXRE-27G1000-C-73			Warm White	2700 K	Square	1348 lm	90	34 V	10.2 mm		720 mA	1.7 mm	Chip On Board (COB)	360 mA	Flat	110 lm/W	85 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

BXRE-27 Series

LED Lighting COBs Engines Modules Chip On Board (COB) V6 Array White, Warm Square
