Description
General part information

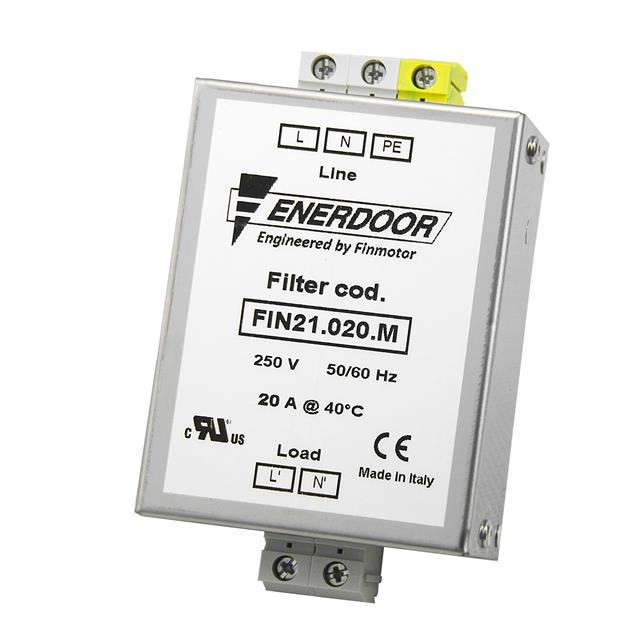

FIN21.020.M
Single Phase EMC/EMI Line Filter 20 A 250V 50/60Hz Single Stage Terminal Block
Technical Specifications
Parameters and characteristics for this part
| Specification | FIN21.020.M |
|---|---|
| Applications | Medical |
| Approval Agency | CSA, UL, CE, cURus |
| Configuration | Single Stage |
| Current | 20 A |
| Filter Type | Single Phase |
| Frequency - Operating | 60Hz, 50Hz |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Termination Style | Terminal Block |
| Voltage - Rated AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
