Description
General part information

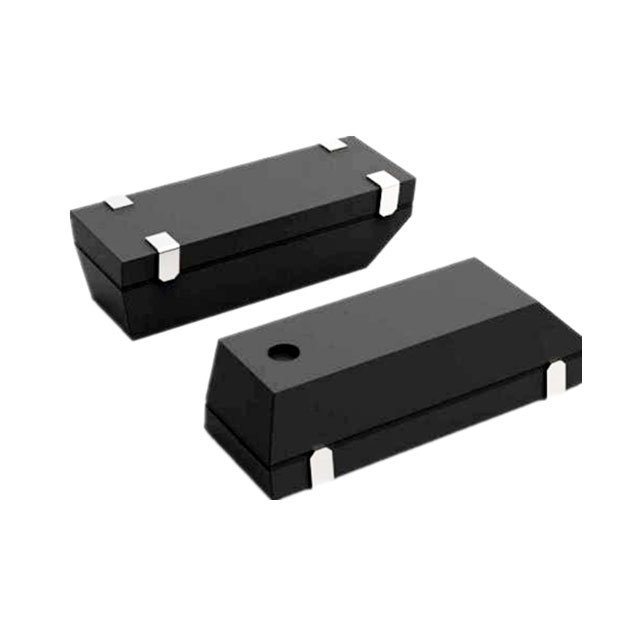

YQ10M00000S420
10 MHz ±30ppm Crystal 20pF 120 Ohms 4-SMD, J-Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | YQ10M00000S420 |
|---|---|
| ESR (Equivalent Series Resistance) | 120 Ohm |
| Frequency | 10 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.146 in |
| Load Capacitance | 20 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-SMD, J-Lead |
| Size / Dimension Length | 0.492 in |
| Size / Dimension Width | 0.181 in |
| Type | MHz Crystal |
