Description
General part information

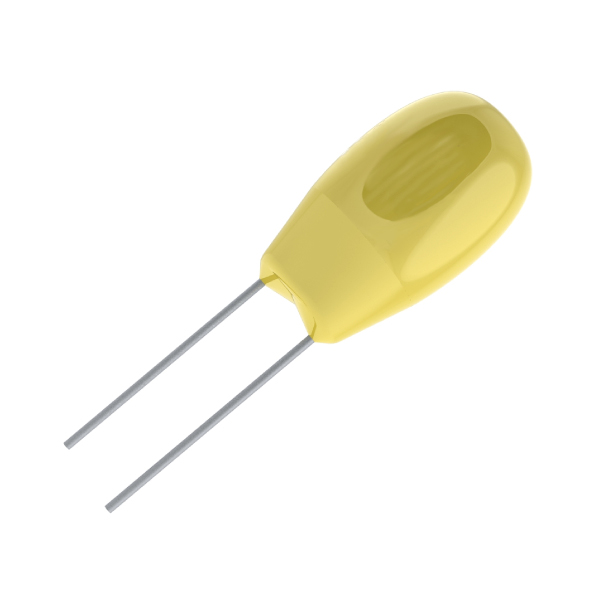

T352D335K035AT
3.3 µF Conformal Coated Tantalum Capacitors 35 V Radial, Disc 4Ohm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | T352D335K035AT |
|---|---|
| Capacitance | 3.3 µF |
| ESR (Equivalent Series Resistance) | 4 Ohm |
| Features | General Purpose |
| Height - Seated (Max) | 0.449 in |
| Lead Spacing | 0.2 in |
| Manufacturer Size Code | T352D |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Disc, Radial |
| Size / Dimension Diameter | 0.197 in |
| Tolerance | 10 % |
| Type | Conformal Coated |
| Voltage - Rated | 35 V |
