FMC0810315-36
ActiveFairview Microwave
CBL ASSY BNCPLUG-10-32PLUG 36
FMC0810315-36
ActiveFairview Microwave
CBL ASSY BNCPLUG-10-32PLUG 36
Description
General part information
FMC0810315-36

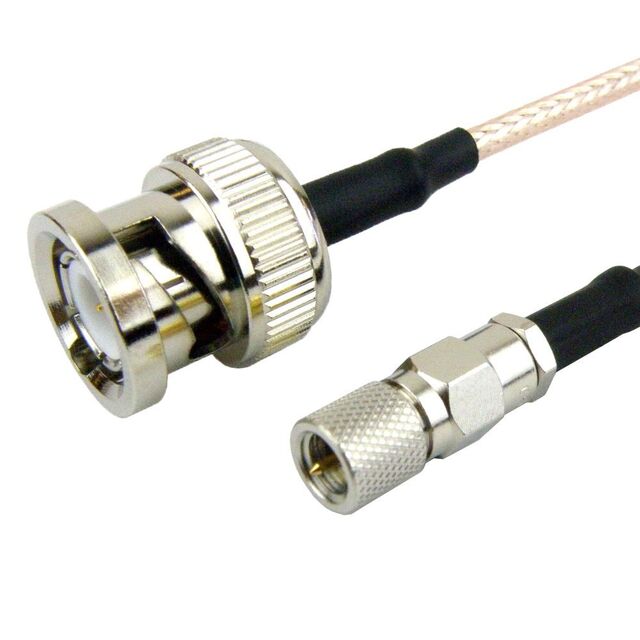

Cable Assembly Coaxial 10-32 to BNC RG-316 36.00" (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMC0810315-36 |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | 10-32 Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 316 |
| Color | Tan |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 2 GHz |
| Length | 36 in |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Overall Impedance | 50 Ohms |
| Style | 10-32 to BNC |
