MAX6029EUK33+T
ActiveAnalog Devices Inc./Maxim Integrated

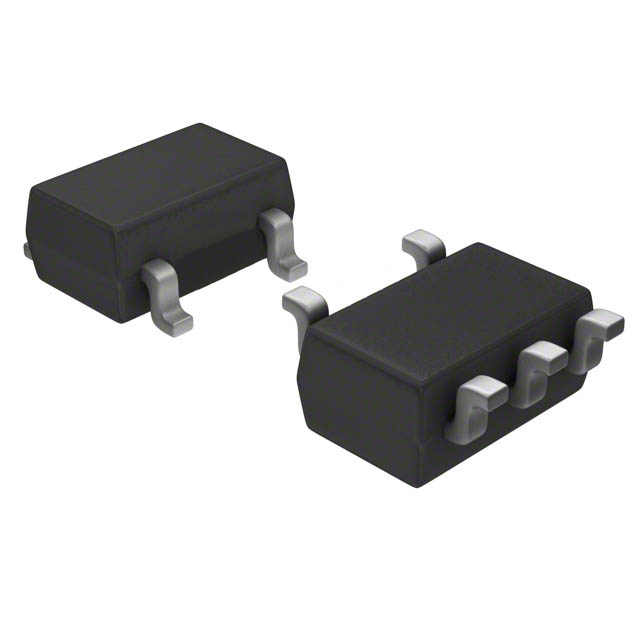

IC VREF SERIES 0.15% SOT23-5
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAX6029EUK33+T
ActiveAnalog Devices Inc./Maxim Integrated
IC VREF SERIES 0.15% SOT23-5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX6029EUK33+T | MAX6029 Series |
|---|---|---|
| Current - Output | 4 mA | 4 mA |
| Current - Supply | 7.25 µA | 5.25 - 10.5 µA |
| Mounting Type | Surface Mount | Surface Mount |
| Noise - 0.1Hz to 10Hz | 56 µVp-p | 39 - 90 µVp-p |
| Noise - 10Hz to 10kHz | 174 µVrms | 115 - 245 µVrms |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | 27.03 °C/W | 27.03 °C/W |
| Package / Case | SOT-753, SC-74A | 8-SOIC, SOT-753, SC-74A |
| Package / Case | - | 3.9 mm |
| Reference Type | Series | Series |
| Supplier Device Package | SOT-23-5 | 8-SOIC, SOT-23-5 |
| Temperature Coefficient | 30 ppm/°C | 30 ppm/°C |
| Tolerance [Max] | 1.5 % | 1 - 1.5 % |
| Tolerance [Min] | -1.5 % | -1.5 - -1 % |
| Voltage - Input [Max] | 12.6 V | 12.6 V |
| Voltage - Input [Min] | 3.5 V | 2.5 - 5.2 V |
| Voltage - Output (Min/Fixed) | 3.3 V | 2.048 - 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 9.86 | |
| 10 | $ 6.85 | |||
| 25 | $ 6.07 | |||
| 100 | $ 5.20 | |||
| 250 | $ 4.78 | |||
| 500 | $ 4.52 | |||
| 1000 | $ 4.31 | |||
| Digi-Reel® | 1 | $ 9.86 | ||
| 10 | $ 6.85 | |||
| 25 | $ 6.07 | |||
| 100 | $ 5.20 | |||
| 250 | $ 4.78 | |||
| 500 | $ 4.52 | |||
| 1000 | $ 4.31 | |||
| Tape & Reel (TR) | 2500 | $ 4.22 | ||
MAX6029 Series
IC VREF SERIES 0.2% 8SOIC
| Part | Voltage - Output (Min/Fixed) | Mounting Type | Noise - 0.1Hz to 10Hz | Temperature Coefficient | Current - Output | Tolerance [Min] | Tolerance [Max] | Supplier Device Package | Output Type | Package / Case | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Noise - 10Hz to 10kHz | Voltage - Input [Min] | Voltage - Input [Max] | Current - Supply | Reference Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX6029ESA25+ | 2.5 V | Surface Mount | 39 µVp-p | 30 ppm/°C | 4 mA | -1 % | 1 % | 8-SOIC | 27.03 °C/W | 3.9 mm | 8-SOIC | 85 °C | -40 °C | 137 µVrms | 2.7 V | 12.6 V | 5.75 µA | Series |
Analog Devices Inc./Maxim Integrated MAX6029EUK25+T | 2.5 V | Surface Mount | 39 µVp-p | 30 ppm/°C | 4 mA | -1.5 % | 1.5 % | SOT-23-5 | 27.03 °C/W | SC-74A, SOT-753 | 85 °C | -40 °C | 137 µVrms | 2.7 V | 12.6 V | 5.75 µA | Series | |
Analog Devices Inc./Maxim Integrated MAX6029EUK50+T | 5 V | Surface Mount | 90 µVp-p | 30 ppm/°C | 4 mA | -1.5 % | 1.5 % | SOT-23-5 | 27.03 °C/W | SC-74A, SOT-753 | 85 °C | -40 °C | 245 µVrms | 5.2 V | 12.6 V | 10.5 µA | Series | |
Analog Devices Inc./Maxim Integrated MAX6029ESA25+T | 2.5 V | Surface Mount | 39 µVp-p | 30 ppm/°C | 4 mA | -1 % | 1 % | 8-SOIC | 27.03 °C/W | 3.9 mm | 8-SOIC | 85 °C | -40 °C | 137 µVrms | 2.7 V | 12.6 V | 5.75 µA | Series |
Analog Devices Inc./Maxim Integrated MAX6029EUK41+T | 4.096 V | Surface Mount | 30 ppm/°C | 4 mA | -1.5 % | 1.5 % | SOT-23-5 | 27.03 °C/W | SC-74A, SOT-753 | 85 °C | -40 °C | 210 µVrms | 4.3 V | 12.6 V | 8.75 µA | Series | ||
Analog Devices Inc./Maxim Integrated MAX6029EUK30+T | Surface Mount | 39 µVp-p | 30 ppm/°C | 4 mA | -1.5 % | 1.5 % | SOT-23-5 | 27.03 °C/W | SC-74A, SOT-753 | 85 °C | -40 °C | 161 µVrms | 3.2 V | 12.6 V | 6.75 µA | Series | ||
Analog Devices Inc./Maxim Integrated MAX6029ESA41+T | 4.096 V | Surface Mount | 30 ppm/°C | 4 mA | -1 % | 1 % | 8-SOIC | 27.03 °C/W | 3.9 mm | 8-SOIC | 85 °C | -40 °C | 210 µVrms | 4.3 V | 12.6 V | 8.75 µA | Series | |
Analog Devices Inc./Maxim Integrated MAX6029EUK33+T | 3.3 V | Surface Mount | 56 µVp-p | 30 ppm/°C | 4 mA | -1.5 % | 1.5 % | SOT-23-5 | 27.03 °C/W | SC-74A, SOT-753 | 85 °C | -40 °C | 174 µVrms | 3.5 V | 12.6 V | 7.25 µA | Series | |
Analog Devices Inc./Maxim Integrated MAX6029EUK21-T | 2.048 V | Surface Mount | 30 ppm/°C | 4 mA | -1.5 % | 1.5 % | SOT-23-5 | 27.03 °C/W | SC-74A, SOT-753 | 85 °C | -40 °C | 115 µVrms | 2.5 V | 12.6 V | 5.25 µA | Series |
Description
General part information
MAX6029 Series
Series Voltage Reference IC Fixed 3.3V V ±0.15% 4 mA SOT-23-5
