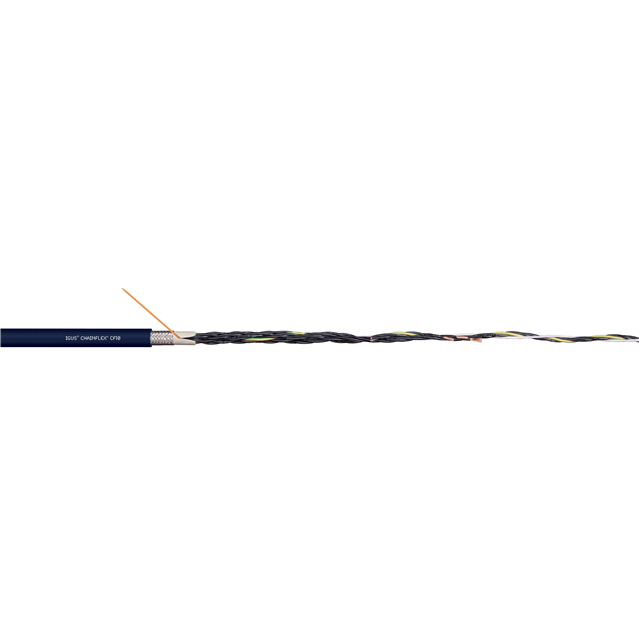

CF10-07-07

Active

Igus

TPE7C/18AWG CTRL 1KV FLEX FEET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CF10-07-07

Active

Igus

TPE7C/18AWG CTRL 1KV FLEX FEET

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CF10-07-07	CF10 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)
Conductor Material	Copper, Bare	Copper, Bare
Features	Abrasion Resistant, Rip Cord, Oil Resistant, UV Resistant	Abrasion Resistant, Rip Cord, Oil Resistant, UV Resistant, Flame Retardant
Jacket (Insulation) Diameter	-	19.51 mm
Jacket (Insulation) Diameter [diameter]	9.5 mm	0.768 - 21.49 in
Jacket (Insulation) Diameter [diameter]	0.374 in	0.256 - 0.846 in
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)
Jacket Color	Blue	Blue, Gray
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Number of Conductors	7	2 - 25
Shield Coverage	90 %, 100 %	90 - 100 %
Shield Material	Copper, Tinned, Aluminum	Copper, Tinned, Aluminum
Shield Type	Braid	Braid, Foil
Spool Size	1000 ft	1000 ft
Spool Size	304.8 m	304.8 m
Usage	Industrial, Control	Industrial, Control
Voltage	500 V	300 - 1000 V
Wire Gauge	18 AWG	12 - 26 AWG

CF10 Series

CABLE 4COND 17AWG BLUE SHLD FEET

Part	Cable Type	Length	Shield Coverage	Jacket Color	Usage	Number of Conductors	Conductor Material	Shield Material	Wire Gauge	Jacket (Insulation) Material	Conductor Insulation	Voltage	Features	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Igus CF10-10-04	Multi-Conductor	Enter Number of Feet in Order Quantity	90 %, 100 %	Blue	Industrial, Control	4	Copper, Bare	Aluminum, Copper, Tinned	17 AWG	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)	500 V	Abrasion Resistant, Oil Resistant, Rip Cord, UV Resistant	Braid
Igus CF10-25-12	Multi-Conductor	Enter Number of Feet in Order Quantity	90 %, 100 %	Blue	Industrial, Control	12	Copper, Bare	Aluminum, Copper, Tinned	13.5 AWG	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)	500 V	Abrasion Resistant, Oil Resistant, Rip Cord, UV Resistant	Braid	0.768 in	19.51 mm
Igus CF10-40-04	Multi-Conductor	Enter Number of Feet in Order Quantity	90 %, 100 %	Blue	Industrial, Control	4	Copper, Bare	Aluminum, Copper, Tinned	12 AWG	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)	500 V	Abrasion Resistant, Oil Resistant, Rip Cord, UV Resistant	Braid	12.5 mm		0.492 in
Igus CF10-10-02	Multi-Conductor	Enter Number of Feet in Order Quantity	90 %, 100 %	Blue	Industrial, Control	2	Copper, Bare	Aluminum, Copper, Tinned	17 AWG	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)	500 V	Abrasion Resistant, Oil Resistant, Rip Cord, UV Resistant	Braid	7.49 mm		0.295 in
Igus CF10-05-12	Multi-Conductor	Enter Number of Feet in Order Quantity	90 %, 100 %	Blue	Industrial, Control	12	Copper, Bare	Aluminum, Copper, Tinned	20 AWG	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)	500 V	Abrasion Resistant, Oil Resistant, Rip Cord, UV Resistant	Braid, Foil	11.51 mm		0.453 "
Igus CF10-UL-05-12	Multi-Conductor	Enter Number of Feet in Order Quantity	90 %, 100 %	Gray	Industrial, Control	12	Copper, Bare	Aluminum, Copper, Tinned	20 AWG	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)	1000 V	Abrasion Resistant, Flame Retardant, Oil Resistant, Rip Cord	Braid, Foil	13.01 mm		0.512 in
Igus CF10-25-04	Multi-Conductor	Enter Number of Feet in Order Quantity	90 %, 100 %	Blue	Industrial, Control	4	Copper, Bare	Aluminum, Copper, Tinned	13.5 AWG	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)	500 V	Abrasion Resistant, Oil Resistant, Rip Cord, UV Resistant	Braid	11 mm		0.433 in
Igus CF10-15-04	Multi-Conductor	Enter Number of Feet in Order Quantity	90 %, 100 %	Blue	Industrial, Control	4	Copper, Bare	Aluminum, Copper, Tinned	16 AWG	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)	500 V	Abrasion Resistant, Oil Resistant, Rip Cord, UV Resistant	Braid	8.99 mm		0.354 in
Igus CF10-10-07	Multi-Conductor	Enter Number of Feet in Order Quantity	90 %, 100 %	Blue	Industrial, Control	7	Copper, Bare	Aluminum, Copper, Tinned	17 AWG	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)	500 V	Abrasion Resistant, Oil Resistant, Rip Cord, UV Resistant	Braid	10.01 mm		0.394 in
Igus CF10-UL-02-04	Multi-Conductor	Enter Number of Feet in Order Quantity	90 %, 100 %	Gray	Industrial, Control	4	Copper, Bare	Aluminum, Copper, Tinned	24 AWG	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)	300 V	Abrasion Resistant, Flame Retardant, Oil Resistant, Rip Cord	Braid, Foil	7.01 mm		0.276 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 9.34
		3	$ 8.60
		5	$ 8.30
		7	$ 8.13
		10	$ 7.91
		25	$ 7.44
		50	$ 7.05
		100	$ 6.74

Description

General part information

CF10 Series

7 Conductor Multi-Conductor Cable Blue 18 AWG Braid Enter Number of Feet in Order Quantity

Documents

Technical documentation and resources
