Specification	1703901000

Color	Gray
Connector Style	Impact
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	30 µin
Differential Pairs (Typical)	40
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Columns	10
Number of Positions	120
Number of Positions Loaded	All
Number of Rows	12
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Termination	Press-Fit
Voltage Rating	30 V

170390 Series

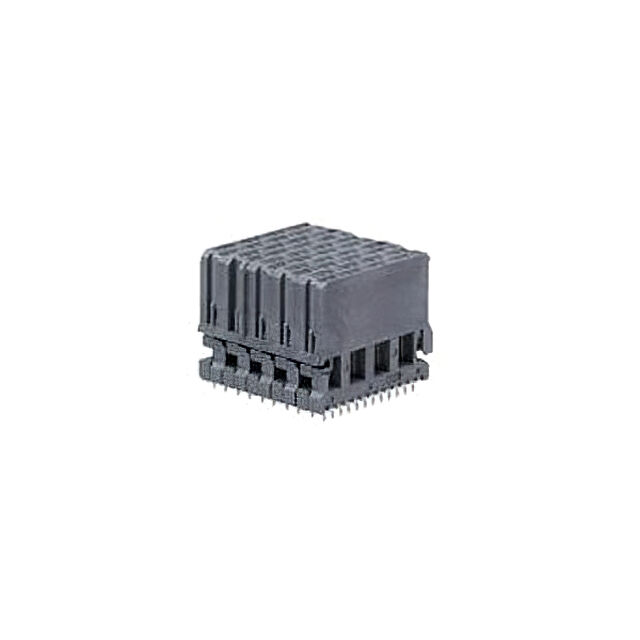

Impact 85 Ohm Plus 4 Pair Mezzanine Receptacle, Stack Height 25.00mm, Unguided, 16 Columns, 192 Circuits, Lead Free

Part	Contact Finish Thickness	Number of Rows	Number of Columns	Number of Positions	Connector Style	Color	Mounting Type	Differential Pairs (Typical)	Number of Positions Loaded	Connector Type	Contact Finish	Termination	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Voltage Rating	Features
Molex 1703901007	30 µin	12	14	168	Impact	Gray	Board Edge Right Angle Through Hole	56	All	Female Sockets Receptacle	Gold	Press-Fit
Molex 1703905008	30 µin	12	8	96	Guide Right Impact	Gray	Through Hole	32	All	Female Sockets Receptacle	Gold	Press-Fit	-55 °C	85 °C	UL94 V-0	30 V	Board Guide
Molex 1703901038	30 µin	12	8	96			Through Hole	32	All	Female Sockets Receptacle	Gold	Solder			UL94 HB UL94 V-0
Molex 1703901020	30 µin	12	10	120	Impact	Gray	Board Edge Right Angle Through Hole	40	All	Female Sockets Receptacle	Gold	Press-Fit	-55 °C	85 °C	UL94 V-0	30 V
Molex 1703903030	30 µin	12	10	120	Guide Left Impact	Gray	Through Hole	40	All	Female Sockets Receptacle	Gold	Press-Fit	-55 °C	85 °C	UL94 V-0	30 V	Board Guide
Molex 1703903006	30 µin	12	16	192	Guide Left Impact	Gray	Through Hole	64	All	Female Sockets Receptacle	Gold	Press-Fit	-55 °C	85 °C	UL94 V-0	30 V	Board Guide
Molex 1703901006	30 µin	12	16	192	Impact	Gray	Board Edge Right Angle Through Hole	64	All	Female Sockets Receptacle	Gold	Press-Fit	-55 °C	85 °C	UL94 V-0	30 V
Molex 1703903039	30 µin	12	18	216	Guide Left Impact	Gray	Through Hole	72	All	Female Sockets Receptacle	Gold	Press-Fit	-55 °C	85 °C	UL94 V-0	30 V	Board Guide
Molex 1703901027	30 µin	12	14	56	Impact		Through Hole	56	All	Female Sockets Receptacle	Gold	Solder			UL94 V-0
Molex 1703901036	30 µin	12	16	192	Impact		Through Hole	64	All	Female Sockets Receptacle	Gold	Solder			UL94 V-0
