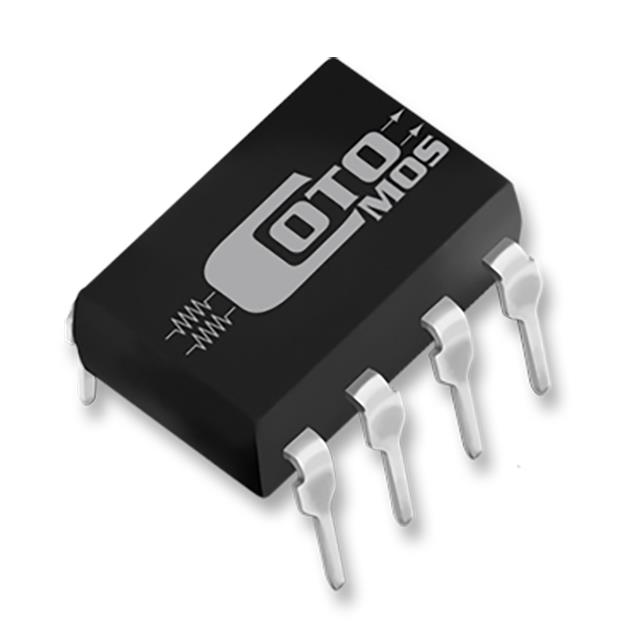

CT774

Active

Coto Technology

MOSFET RELAY, SPST-NO (1 FORM A), SPST-NC (1 FORM B), AC / DC, 400 V, 100 MA, DIP-8, THROUGH HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet +1

CT774

Active

Coto Technology

MOSFET RELAY, SPST-NO (1 FORM A), SPST-NC (1 FORM B), AC / DC, 400 V, 100 MA, DIP-8, THROUGH HOLE

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.36
		10	$ 4.68
		25	$ 4.44
		50	$ 4.26
		100	$ 4.09
		250	$ 4.02
Newark	Each	100	$ 4.25

Description

General part information

- Series

Solid State SPST-NO + SPST-NC (1 Form A and B) 8-DIP (0.300", 7.62mm)

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

CotoMos Selector Chart

Datasheet

Specification	CT774	- Series

Approval Agency	-	CUL, UL
Circuit	SPST-NO, SPST-NC	SPST-NO (1 Form A) x 2, SPST-NO, SPST-NC, SPST-NC (1 Form B) x 2, DPST-NO/NC, SPST-NC (1 Form B), DPST-NO (2 Form A)
Load Current	100 mA	1 - 400 mA
Mounting Type	Through Hole	Through Hole, Surface Mount
On-State Resistance (Max)	-	160 mOhms
On-State Resistance (Max) [Max]	30 Ohm	1.6 - 500 Ohm
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	DC, AC	DC, AC
Package / Case	0.3 in	0.173 - 7.62 in
Package / Case	8-DIP	8-DIP, 8-SOP, 4-SOP, 6-SMD, 6-DIP, 8-SMD, 4-SMD, Gull Wing, 4-DIP
Package / Case	7.62 mm	4.4 - 7.62 mm
Package / Case	-	4.4 mm
Package / Case	-	0.173 in
Package / Case	-	0.3 in
Supplier Device Package	8-DIP	8-DIP, 8-SOP, 4-SOP, 6-SMD, 6-DIP, 8-SMD, 4-DIP
Termination Style	PC Pin	PC Pin, Gull Wing
Voltage - Input	1.37 VDC	1.17 - 5 VDC
Voltage - Input	-	1.2 VDC
Voltage - Input	-	1.5 VDC
Voltage - Load	-	0 V
Voltage - Load	-	20 - 1500 V

Part	Circuit	Termination Style	Supplier Device Package	Package / Case	Package / Case	Package / Case	Voltage - Input	Output Type	On-State Resistance (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Load Current	Mounting Type	Package / Case [custom]	Package / Case [x]	Voltage - Load [Min]	Voltage - Load [Max]	Package / Case	On-State Resistance (Max)
Coto Technology CT330	SPST-NO (1 Form A) x 2	PC Pin	8-DIP	0.3 in	8-DIP	7.62 mm	1.37 VDC	AC, DC	30 Ohm	85 °C	-40 °C	100 mA	Through Hole
Coto Technology C774S	SPST-NC, SPST-NO	Gull Wing	8-SOP		8-SOP		1.37 VDC	AC, DC	30 Ohm	85 °C	-40 °C	80 mA	Surface Mount	4.4 mm	0.173 in
Coto Technology C226S		Gull Wing	4-SOP	0.173 in	4-SOP	4.4 mm	1.37 VDC	AC, DC	85 mOhms	85 °C	-40 °C	2 A	Surface Mount
Coto Technology CT674	SPST-NC (1 Form B) x 2	PC Pin	8-DIP	0.3 in	8-DIP	7.62 mm	1.37 VDC	AC, DC	50 Ohm	85 °C	-40 °C	80 mA	Through Hole
Coto Technology C234S		Gull Wing	4-SOP	0.173 in	4-SOP	4.4 mm	1.37 VDC	AC, DC		85 °C	-40 °C	180 mA	Surface Mount			0 V	200 V
Coto Technology CS139		Gull Wing	6-SMD	0.3 in	6-SMD	7.62 mm	1.17 VDC	AC, DC	150 Ohm	85 °C	-40 °C	50 mA	Surface Mount			0 V	1000 V
Coto Technology CT138		PC Pin	6-DIP	7.62 mm	6-DIP		1.37 VDC	AC, DC	60 Ohm	85 °C	-40 °C	80 mA	Through Hole			0 V	600 V	0.3 in
Coto Technology CT331	SPST-NO (1 Form A) x 2	PC Pin	8-DIP	0.3 in	8-DIP	7.62 mm	1.37 VDC	AC, DC	24 Ohm	85 °C	-40 °C	110 mA	Through Hole			0 V	350 V
Coto Technology CT147		PC Pin	6-DIP	7.62 mm	6-DIP		1.37 VDC	AC, DC		85 °C	-40 °C	2 A	Through Hole			0 V	80 V	0.3 in	160 mOhms
Coto Technology CT139		PC Pin	6-DIP	7.62 mm	6-DIP		1.17 VDC	AC, DC	150 Ohm	85 °C	-40 °C	50 mA	Through Hole			0 V	1000 V	0.3 in
