Specification	HW-02-10-SM-D-538-110-LL

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	30 µin
Length - Overall Pin	0.83 in
Length - Post (Mating)	0.182 in
Length - Stack Height	0.538 in
Length - Tail	0.11 in
Mounting Type	Through Hole
Number of Positions	4
Number of Rows	2
Pitch	0.1 in
Row Spacing	0.1 in
Termination	Kinked Pin, Solder

HW-02-10 Series

Part	Color	Length - Stack Height	Termination	Number of Rows	Row Spacing	Mounting Type	Contact Finish - Post (Mating)	Length - Overall Pin	Pitch	Length - Post (Mating)	Contact Finish Thickness - Post (Mating)	Number of Positions	Length - Tail
Samtec Inc. HW-02-10-G-D-495-SM	Black	0.495 in	Solder	2	0.1 in	Surface Mount	Gold	0.765 in	0.1 in	0.27 in	10 µin	4
Samtec Inc. HW-02-10-T-S-295-365	Black	0.295 in	Solder	1		Through Hole	Tin	0.83 in	0.1 in	0.17 in		2	0.365 in
Samtec Inc. HW-02-10-G-D-500-SM	Black	0.5 in	Solder	2	0.1 in	Surface Mount	Gold	0.765 in	0.1 in	0.265 in	10 µin	4
Samtec Inc. HW-02-10-F-D-250-SM	Black	0.25 in	Solder	2	0.1 in	Surface Mount	Gold	0.765 in	0.1 in	0.515 in	3 µin	4
Samtec Inc. HW-02-10-F-S-575-SM	Black	0.575 in	Solder	1		Surface Mount	Gold	0.765 in	0.1 in	0.19 in	3 µin	2
Samtec Inc. HW-02-10-F-D-620-SM	Black	0.62 in	Solder	2	0.1 in	Surface Mount	Gold	0.765 in	0.1 in	0.145 in	3 µin	4

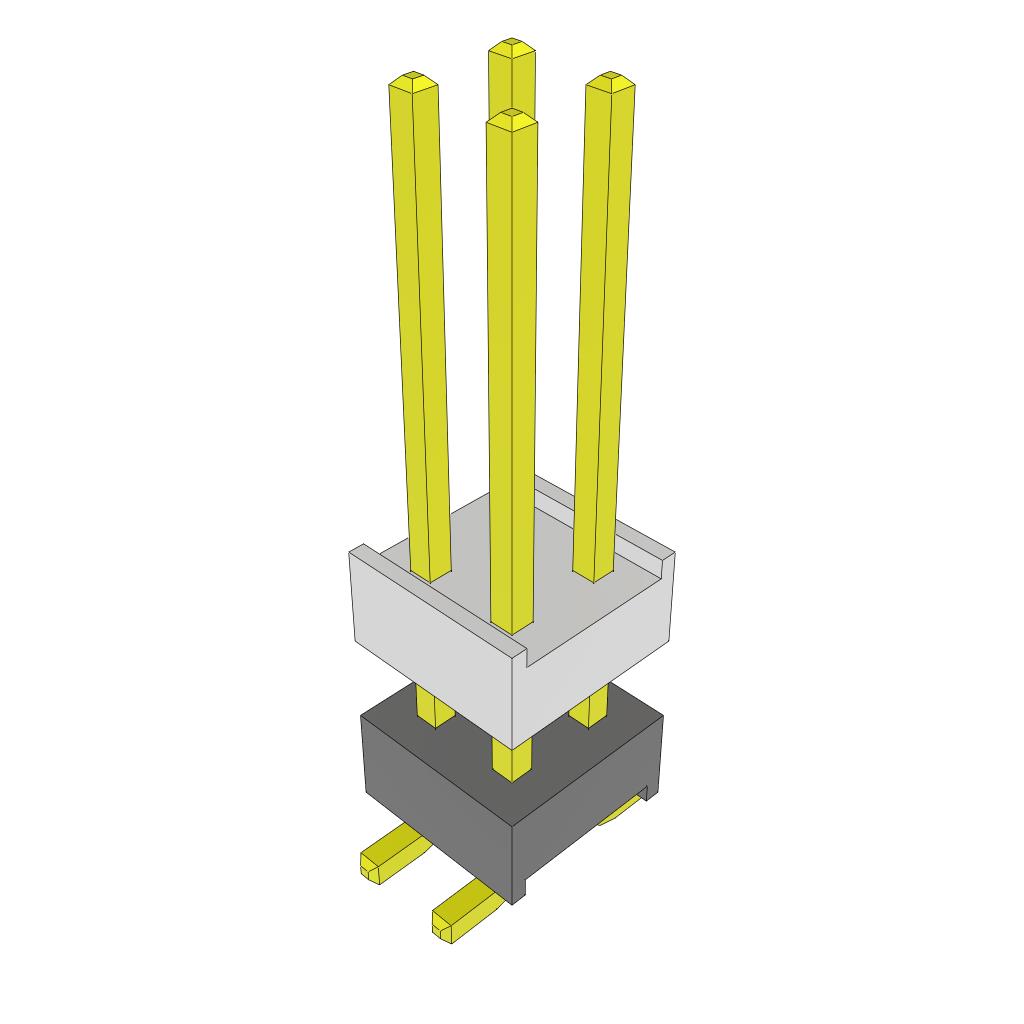

Samtec Inc. HW-02-10-G-D-340-SM	Black	0.34 in	Solder	2	0.1 in	Surface Mount	Gold	0.765 in	0.1 in	0.425 in	10 µin	4
Samtec Inc. HW-02-10-F-D-575-SM	Black	0.575 in	Solder	2	0.1 in	Surface Mount	Gold	0.765 in	0.1 in	0.19 in	3 µin	4
Samtec Inc. HW-02-10-H-D-500-110	Black	0.5 in	Solder	2	0.1 in	Through Hole	Gold	0.83 in	0.1 in	0.22 in	30 µin	4	0.11 in
Samtec Inc. HW-02-10-L-D-315-125	Black	0.315 in	Solder	2	0.1 in	Through Hole	Gold	0.83 in	0.1 in	0.39 in	10 µin	4	0.125 in
