R7FS124773A01CFL#BA1

Active

Renesas Electronics Corporation

IC MCU 32BIT 128KB FLASH 48LFQFP

Find alt

Alpha

R7FS124773A01CFL#BA1

Active

Renesas Electronics Corporation

IC MCU 32BIT 128KB FLASH 48LFQFP

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

S1 Series

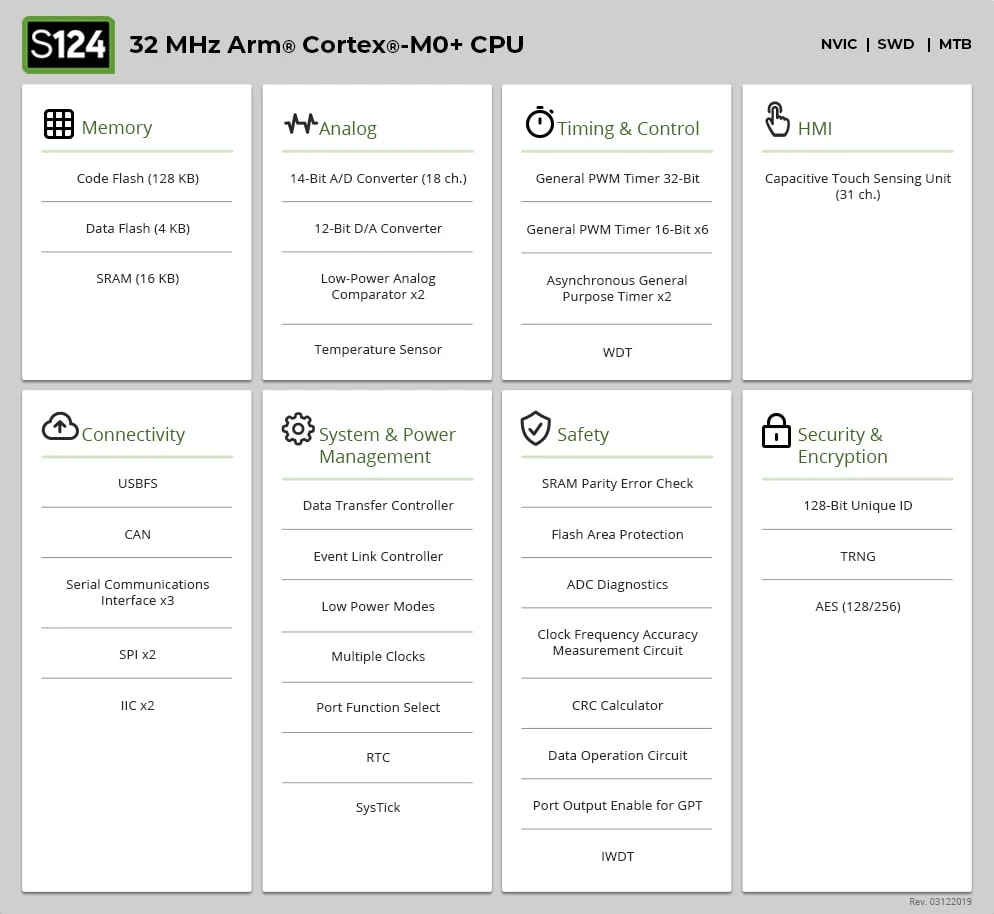

Uniquely suited for simple battery-operated sensing applications that require low power operation modes and fast wake-up times, the S124 MCU Group has 128KB of flash memory and 16KB of SRAM. It includes a 14-bit A/D converter, 12-bit D/A converter, and a Capacitive Touch Sensing Unit (CTSU), in addition to safety and security features.

Commercial software worth over $100K which is available to developers using the Synergy Platform for no charge and with unlimited production license rights. The production-ready SSP is fully tested, maintained, and supported by Renesas.

Download SSP

Technical Specifications

Parameters and characteristics for this part

Specification	R7FS124773A01CFL#BA1

A/D Channels	14 count
A/D Resolution (bits)	14 bit
Connectivity	UART, SPI, I2C, CANbus, USART, USB, SCI
Converter Architecture	SAR
Core Processor	ARM® Cortex®-M0+
Core Size (Bit Width)	32 Bit
D/A Channels	1 count
D/A Resolution (bits)	12 bit
EEPROM Size (Depth)	4 K
EEPROM Size (Width)	8 bit
Mounting Type	Surface Mount
Number of I/O	35
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal
Package / Case	48-LQFP
Package Length	7 mm
Package Name	48-LFQFP
Package Width	7 mm
Peripherals	WDT, PWM, POR, LVD
Program Memory Depth (128KB)	128 K
Program Memory Size	128KB
Program Memory Type	FLASH
Program Memory Width (128KB)	8
RAM Size Depth	16 K
RAM Size Width	8 bit
Speed	32 MHz
Voltage - Supply (Vcc/Vdd) Maximum	5.5 V
Voltage - Supply (Vcc/Vdd) Minimum	1.6 V

S1 Series

Part	Connectivity	Core Processor	EEPROM Size (Width)	EEPROM Size (Depth)	Program Memory Depth (128KB)	Program Memory Size	Program Memory Width (128KB)	RAM Size Width	RAM Size Depth	Operating Temperature (Max)	Operating Temperature (Min)	Number of I/O	Core Size (Bit Width)	Converter Architecture	A/D Channels	D/A Resolution (bits)	A/D Resolution (bits)	D/A Channels	Mounting Type	Program Memory Type	Oscillator Type	Package Length	Package Name	Package Width	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Speed	Peripherals	Package / Case	Core Configuration
Renesas Electronics Corporation R7FS124773A01CNE#AA1	CANbus I2C SCI SPI UART USART USB	ARM® Cortex®-M0+	8 bit	4 K	128 K	128KB	8	8 bit	16 K	105 °C	-40 °C	35	32 Bit	SAR	14 count	12 bit	12 bit	1 count	Surface Mount	FLASH	Internal	7 mm	48-HWQFN	7 mm	5.5 V	1.6 V	32 MHz	LVD POR PWM WDT	48-WFQFN Exposed Pad	Single-Core
Renesas Electronics Corporation R7FS124773A01CNB#BA1	CANbus I2C SCI SPI UART USART USB	ARM® Cortex®-M0+	8 bit	4 K	128 K	128KB	8	8 bit	16 K	105 °C	-40 °C	51	32 Bit	SAR	18 count	12 bit	14 bit	1 count	Surface Mount	FLASH	Internal	8 mm	64-HWQFN	8 mm	5.5 V	1.6 V	32 MHz	LVD POR PWM WDT	64-WFQFN Exposed Pad
Renesas Electronics Corporation R7FS124773A01CNB#AA1	CANbus I2C SCI SPI UART USART USB	ARM® Cortex®-M0+	8 bit	4 K	128 K	128KB	8	8 bit	16 K	105 °C	-40 °C	51	32 Bit	SAR	18 count	12 bit	14 bit	1 count	Surface Mount	FLASH	Internal	8 mm	64-HWQFN	8 mm	5.5 V	1.6 V	32 MHz	LVD POR PWM WDT	64-WFQFN Exposed Pad	Single-Core
Renesas Electronics Corporation R7FS124773A01CNF#BA1	CANbus I2C SCI SPI UART USART USB	ARM® Cortex®-M0+	8 bit	4 K	128 K	128KB	8	8 bit	16 K	105 °C	-40 °C	29	32 Bit	SAR	12 count	12 bit	14 bit	1 count	Surface Mount	FLASH	Internal	6 mm	40-HWQFN	6 mm	5.5 V	1.6 V	32 MHz	LVD POR PWM WDT	40-WFQFN Exposed Pad
Renesas Electronics Corporation R7FS124773A01CNF#AA1	CANbus I2C SCI SPI UART USART USB	ARM® Cortex®-M0+	8 bit	4 K	128 K	128KB	8	8 bit	16 K	105 °C	-40 °C	29	32 Bit	SAR	12 count	12 bit	14 bit	1 count	Surface Mount	FLASH	Internal	6 mm	40-HWQFN	6 mm	5.5 V	1.6 V	32 MHz	LVD POR PWM WDT	40-WFQFN Exposed Pad	Single-Core
Renesas Electronics Corporation R7FS124773A01CNE#BA1	CANbus I2C SCI SPI UART USART USB	ARM® Cortex®-M0+	8 bit	4 K	128 K	128KB	8	8 bit	16 K	105 °C	-40 °C	35	32 Bit	SAR	14 count	12 bit	12 bit	1 count	Surface Mount	FLASH	Internal	7 mm	48-HWQFN	7 mm	5.5 V	1.6 V	32 MHz	LVD POR PWM WDT	48-WFQFN Exposed Pad

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

S124 Microcontroller Group Datasheet

R7FS124773A01CFL#BA1 | Datasheet
