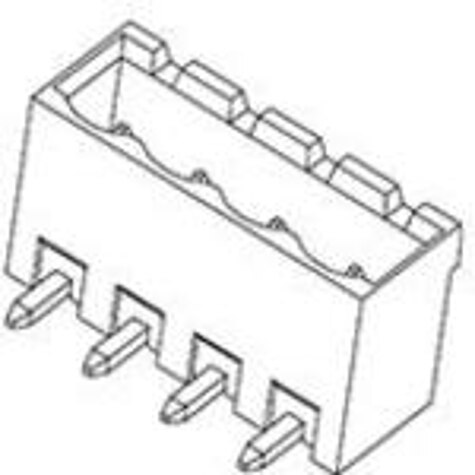

Specification	0395326511

Color	Green
Contact Material	Brass
Contact Mating Finish	Gold
Contact Tail Length	0.15 in
Current - UL	15 A
Header Orientation	Right Angle
Header Orientation Angle	90 °
Housing Material	Nylon 6/6, Polyamide, PA66
Insulation Height	0.472 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	11
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	5.08 mm
Positions Per Level	11
Termination Style	Solder
Type	Shrouded (4 Side), Male Pins, Header
Voltage - UL	300 V

039532 Series

...

Part	Mounting Type	Header Orientation Angle	Header Orientation	Number of Levels	Type	Contact Mating Finish	Operating Temperature (Min)	Operating Temperature (Max)	Termination Style	Voltage - UL	Current - UL	Color	Pitch	Number of Positions	Positions Per Level	Material Flammability Rating	Insulation Height	Contact Tail Length	Housing Material	Contact Material
Molex 0395321020	Through Hole	90 °	Right Angle	1	Header Male Pins Shrouded (4 Side)	Tin	-40 °C	105 °C	Solder	300 V	15 A	Black	5.08 mm	20	20	UL94 V-0	0.472 in	0.15 in	Nylon 6/6 PA66 Polyamide	Brass
Molex 0395324515	Through Hole	90 °	Right Angle	1	Header Male Pins Shrouded (4 Side)	Gold	-40 °C	115 °C	Solder	300 V	18 A	Black	5.08 mm	15	15		0.327 in	0.17 in	Nylon PA Polyamide	Brass
Molex 0395325506	Through Hole	90 °	Right Angle	1	Header Male Pins Shrouded (2 Side)	Gold	-40 °C	105 °C	Solder	300 V	15 A	Green	5.08 mm	6	6	UL94 V-0	0.327 in	0.15 in	Nylon 6/6 PA66 Polyamide	Brass
Molex 0395321513	Through Hole	90 °	Right Angle	1	Header Male Pins Shrouded (4 Side)	Gold	-40 °C	105 °C	Solder	300 V	15 A	Black	5.08 mm	13	13	UL94 V-0	0.472 in	0.15 in	Nylon 6/6 PA66 Polyamide	Brass
Molex 0395326503	Through Hole	90 °	Right Angle	1	Header Male Pins Shrouded (4 Side)	Gold	-40 °C	105 °C	Solder	300 V	15 A	Green	5.08 mm	3	3	UL94 V-0	0.472 in	0.15 in	Nylon 6/6 PA66 Polyamide	Brass
Molex 0395324016	Through Hole	90 °	Right Angle	1	Header Male Pins Shrouded (4 Side)	Tin	-40 °C	115 °C	Solder	300 V	18 A	Black	5.08 mm	16	16		0.327 in	0.17 in	Nylon PA Polyamide	Brass
Molex 0395320023	Through Hole	90 °	Right Angle	1	Header Male Pins Shrouded (2 Side)	Tin	-40 °C	105 °C	Solder	300 V	15 A	Black	5.08 mm	23	23	UL94 V-0	0.327 in	0.15 in	Nylon 6/6 PA66 Polyamide	Brass
Molex 0395320513	Through Hole	90 °	Right Angle	1	Header Male Pins Shrouded (2 Side)	Gold	-40 °C	105 °C	Solder	300 V	15 A	Black	5.08 mm	13	13	UL94 V-0	0.327 in	0.15 in	Nylon 6/6 PA66 Polyamide	Brass
Molex 0395326017	Through Hole	90 °	Right Angle	1	Header Male Pins Shrouded (4 Side)	Tin	-40 °C	105 °C	Solder	300 V	15 A	Green	5.08 mm	17	17	UL94 V-0	0.472 in	0.15 in	Nylon 6/6 PA66 Polyamide	Brass
Molex 0395326016	Through Hole	90 °	Right Angle	1	Header Male Pins Shrouded (4 Side)	Tin	-40 °C	105 °C	Solder	300 V	15 A	Green	5.08 mm	16	16	UL94 V-0	0.472 in	0.15 in	Nylon 6/6 PA66 Polyamide	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

0395326511 | Datasheet

39500-001 Prod Spec
