X9001091-W3DSMW

Active

KYOCERA AVX

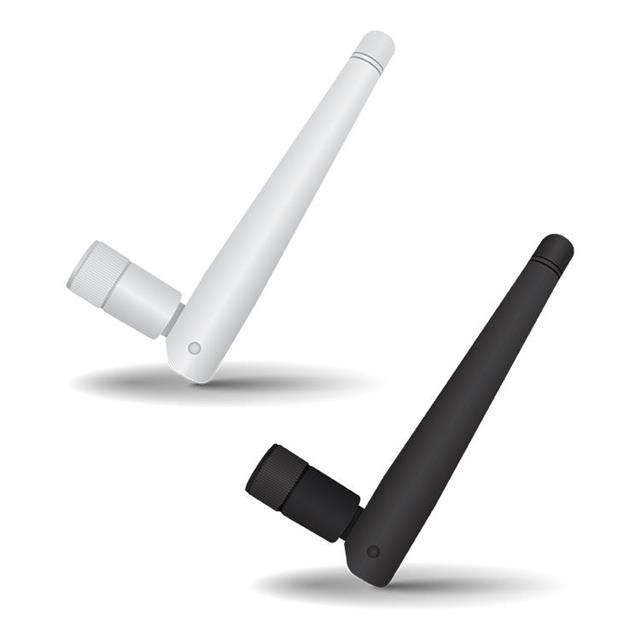

ANTENNA, WLAN WHITE SMA MALE

Search across all available documentation for this part.

Active

KYOCERA AVX

ANTENNA, WLAN WHITE SMA MALE

Technical Specifications

Parameters and characteristics commom to parts in this series

ANTENNA, WLAN BLACK SMA MALE

Part	RF Family/Standard	Gain	Frequency Range [Max]	Frequency Range [Min]	Antenna Type	Mounting Type	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Height (Max) [Max]	Height (Max) [Max]	Applications	Return Loss [Max]	Return Loss [Min]	Frequency (Center/Band)	Number of Bands
KYOCERA AVX X9001091-W3DSMB	802.15.4, Bluetooth, WiFi	1.8 dBi, 4 dBi	2.485 GHz, 5.85 GHz	2.4 GHz, 5.15 GHz	Tilt, Whip	Connector Mount	4 GHz	2 GHz	3 GHz	3.307 in	84 mm	Bluetooth, Wi-Fi, WLAN, Zigbee™	-11 dB	-14 dB	2.4425 GHz, 5.5 GHz	2
KYOCERA AVX X9001091-W3DSMW	802.15.4, Bluetooth, WiFi	1.8 dBi, 4 dBi	2.485 GHz, 5.85 GHz	2.4 GHz, 5.15 GHz	Tilt, Whip	Connector Mount	4 GHz	2 GHz	3 GHz	3.307 in	84 mm	Bluetooth, Wi-Fi, WLAN, Zigbee™	-11 dB	-14 dB	2.4425 GHz, 5.5 GHz	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	500	$ 2.31

General part information

RF ANTENNA Bluetooth, Wi-Fi, WLAN, Zigbee™ Whip, Tilt SMA Male Connector Mount
