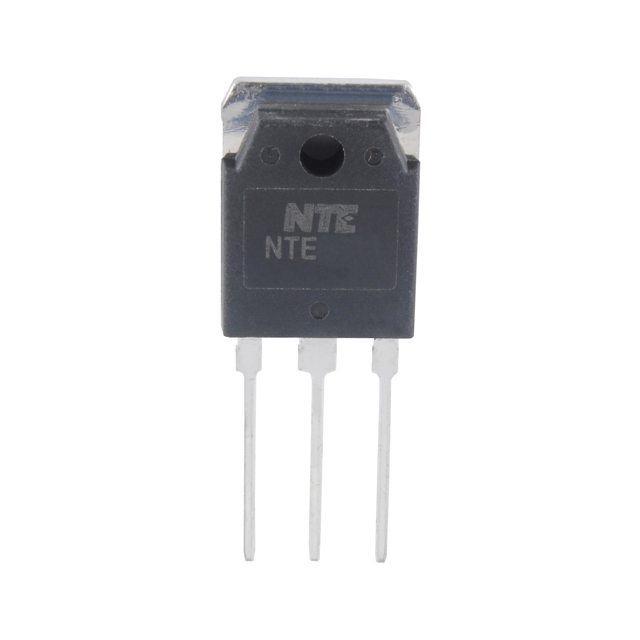

NTE2306
Bipolar (BJT) Transistor PNP 160 V 16 A 1MHz 125 W Through Hole TO-3PN
Technical Specifications
Parameters and characteristics for this part
| Specification | NTE2306 |
|---|---|
| Current - Collector (Ic) (Max) | 16 A |
| Current - Collector Cutoff (Max) | 750 µA |
| DC Current Gain (hFE) (Min) | 15 |
| Frequency - Transition | 1 MHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | TO-3P-3, SC-65-3 |
| Package Name | TO-3PN |
| Power - Max | 125 W |
| Transistor Type | PNP |
| Vce Saturation (Max) | 3.5 V |
| Voltage - Collector Emitter Breakdown (Max) | 160 V |
