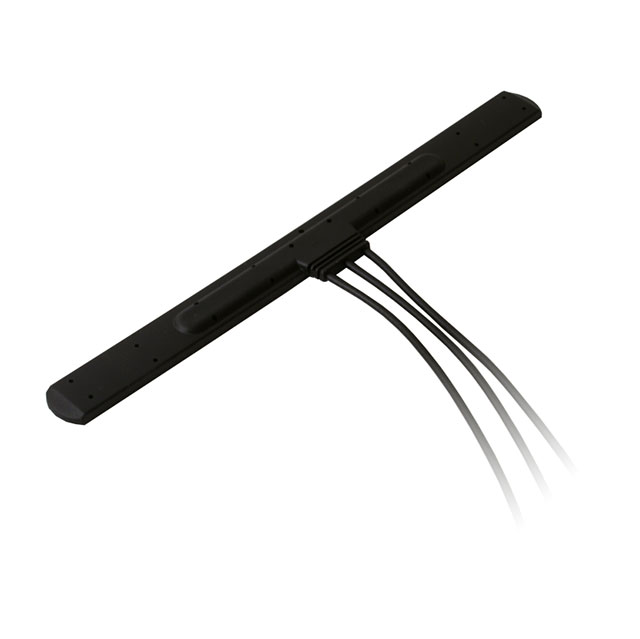

MT-14B-AS-LKWE01

Active

Unictron Technologies Corporation

5GNR / LTE AND WIFI ANTENNA

Search across all available documentation for this part.

Active

Unictron Technologies Corporation

5GNR / LTE AND WIFI ANTENNA

Technical Specifications

Parameters and characteristics for this part

Specification	MT-14B-AS-LKWE01

Antenna Type	Flat Bar
Applications	DCS, Wi-Fi, 5G, UMTS, GSM, PCS, LTE
Features	Cable
Features	3 m
Frequency (Center/Band)	5.8 GHz, 2.495 GHz, 761 MHz, 1.795 GHz, 1.92 GHz, 2.4 GHz, 892 MHz, 2.045 GHz
Frequency Group	Wide Band
Gain	4.63 dBi, 4.07 dBi, 3.24 dBi, 4.31 dBi, , 2.87 dBi, 3.98 dBi, 4.01 dBi, 4.21 dBi, 4.91 dBi, 3.97 dBi, 4.64 dBi, 3.66 dBi
Height (Max) [Max] [z]	0.297 in
Height (Max) [Max] [z]	7.55 mm
Mounting Type	Adhesive
Number of Bands	9
Return Loss [Max]	-6 dB
Return Loss [Min]	-10 dB
RF Family/Standard	Cellular, WiFi
VSWR	2, 3

5GNR / LTE AND WIFI ANTENNA

Part	VSWR	RF Family/Standard	Number of Bands	Gain	Frequency (Center/Band)	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Frequency Group	Features	Features	Antenna Type	Mounting Type	Return Loss [Max]	Return Loss [Min]	Applications
Unictron Technologies Corporation MT-14B-AS-LKWE01	2, 3	Cellular, WiFi	9	, 2.87 dBi, 3.24 dBi, 3.66 dBi, 3.97 dBi, 3.98 dBi, 4.01 dBi, 4.07 dBi, 4.21 dBi, 4.31 dBi, 4.63 dBi, 4.64 dBi, 4.91 dBi	1.795 GHz, 1.92 GHz, 2.045 GHz, 2.4 GHz, 2.495 GHz, 5.8 GHz, 761 MHz, 892 MHz	0.297 in	7.55 mm	Wide Band	Cable	3 m	Flat Bar	Adhesive	-6 dB	-10 dB	5G, DCS, GSM, LTE, PCS, UMTS, Wi-Fi

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA 5G, DCS, GSM, LTE, PCS, UMTS, Wi-Fi Flat Bar Adhesive
