FPG.00.304.CLAD35Z
ActiveLEMO

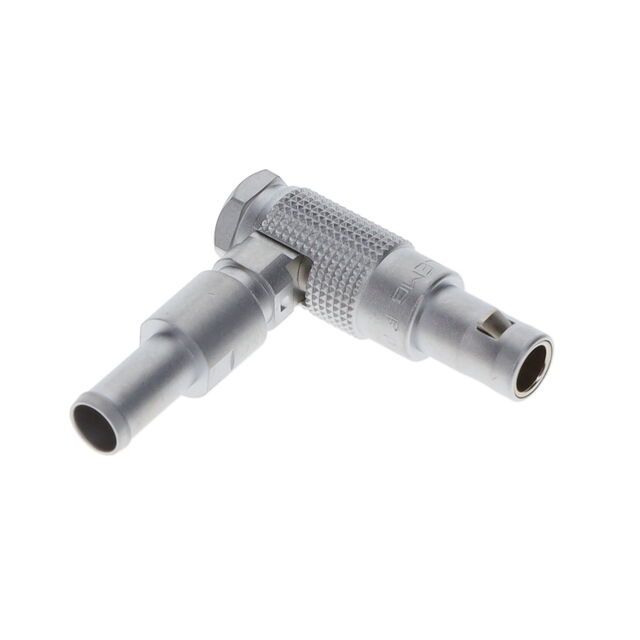

CONN PLUG MALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FPG.00.304.CLAD35Z
ActiveLEMO
CONN PLUG MALE 4P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | FPG.00.304.CLAD35Z | FPG.00.304 Series |
|---|---|---|
| Backshell Material, Plating | Brass, Chrome | Brass, Chrome |
| Cable Opening [diameter] | 3.5 mm | 3.5 mm |
| Cable Opening [diameter] | 0.138 in, 0.106 in | 0.106 - 0.138 in |
| Cable Opening [diameter] | 2.7 mm | 2.7 mm |
| Color | Silver | Silver |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 1 µm | 1 µm |
| Contact Finish Thickness - Mating | 39.4 µin | 39.4 µin |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 2 A | 2 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Backshell | Backshell |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Number of Positions | 4 | 4 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 304 | 304 |
| Shielding | Shielded | Shielded |
FPG.00.304 Series
CONN PLUG MALE 4P GOLD SLDR CUP
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Backshell Material, Plating | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Primary Material | Ingress Protection | Features | Shielding | Orientation | Shell Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Number of Positions | Mounting Type | Fastening Type | Insert Material | Shell Size - Insert | Shell Finish | Current Rating (Amps) | Contact Finish - Mating | Color | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 µm | 39.4 µin | Brass, Chrome | 3.5 mm | 0.106 in, 0.138 in | 2.7 mm | Metal | IP50 | Backshell | Shielded | G | Brass | Brass | -55 °C | 250 °C | UL94 V-0 | 4 | Free Hanging (In-Line), Right Angle | Push-Pull | Polyetheretherketone (PEEK) | 304 | Chrome | 2 A | Gold | Silver | Male Pins, Plug | |
1 µm | 39.4 µin | Brass, Chrome | 3.5 mm | 0.106 in, 0.138 in | 2.7 mm | Metal | IP50 | Backshell | Shielded | G | Brass | Brass | -55 °C | 250 °C | UL94 V-0 | 4 | Free Hanging (In-Line), Right Angle | Push-Pull | Polyetheretherketone (PEEK) | 304 | Chrome | 2 A | Gold | Silver | Male Pins, Plug |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 46.36 | |
| 10 | $ 42.54 | |||
| 25 | $ 40.90 | |||
| 50 | $ 39.54 | |||
| 100 | $ 37.36 | |||
| 250 | $ 36.27 | |||
Description
General part information
FPG.00.304 Series
4 Position Circular Connector Plug, Male Pins Solder Cup
Documents
Technical documentation and resources
