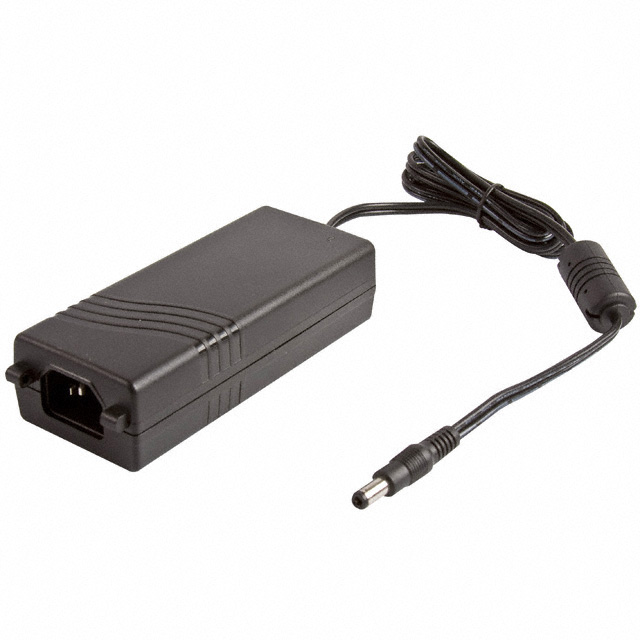

AFM45US12
UnknownXP POWER
AC/DC DESKTOP ADAPTER 12V 48W
Deep-Dive with AI
Search across all available documentation for this part.
AFM45US12
UnknownXP POWER
AC/DC DESKTOP ADAPTER 12V 48W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AFM45US12 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | UL, TUV, CB |
| Cord Length | 0.95 m |
| Cord Length | 37.4 " |
| Current - Output (Max) [Max] | 4 A |
| Efficiency | Level V |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 11 mm |
| Polarization | Positive Center |
| Power (Watts) | 48 W |
| Region Utilized | International |
| Size / Dimension [x] | 121 mm |
| Size / Dimension [x] | 4.76 " |
| Size / Dimension [y] | 1.97 " |
| Size / Dimension [y] | 50 mm |
| Size / Dimension [z] | 1.21 " |
| Size / Dimension [z] | 30.8 mm |
| Standard Number | 60601-1, 62368-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Output | 12 V |
| Weight | 256.28 g |
| Weight | 0.565 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 45.31 | |
Description
General part information
AFM45US12
12V 48 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
