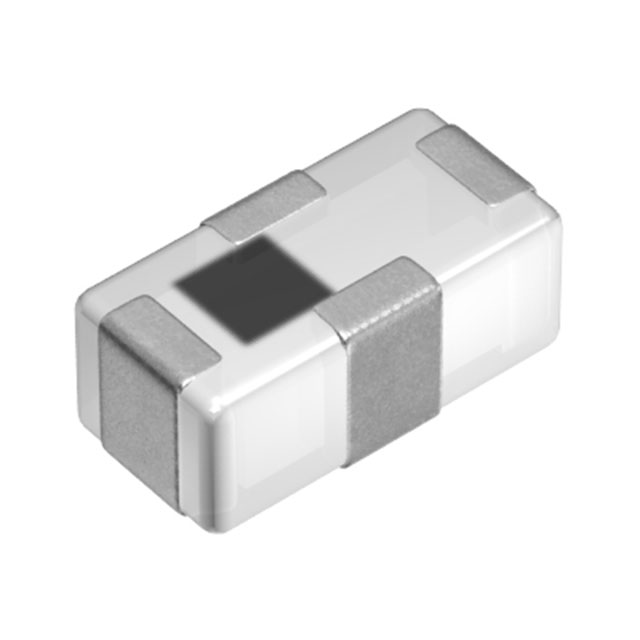

DEA100915LT-6319A1
ActiveTDK Corporation
RF FILTER LOW PASS 869.5MHZ 0402
DEA100915LT-6319A1
ActiveTDK Corporation
RF FILTER LOW PASS 869.5MHZ 0402
Description
General part information
DEA100915LT-6319A1
869.5MHz Center Frequency Low Pass RF Filter (Radio Frequency) 91MHz Bandwidth 0.5dB 0402 (1005 Metric), 4 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | DEA100915LT-6319A1 |
|---|---|
| Bandwidth | 91 MHz |
| Filter Type | Low Pass |
| Frequency (Center) | 869.5 MHz |
| Height (Max) | 0.016 in |
| Insertion Loss | 0.5 dB |
| Mounting Type | Surface Mount |
| Package Name | 0402 |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.039 in |
| Size / Dimension Width | 0.02 in |
