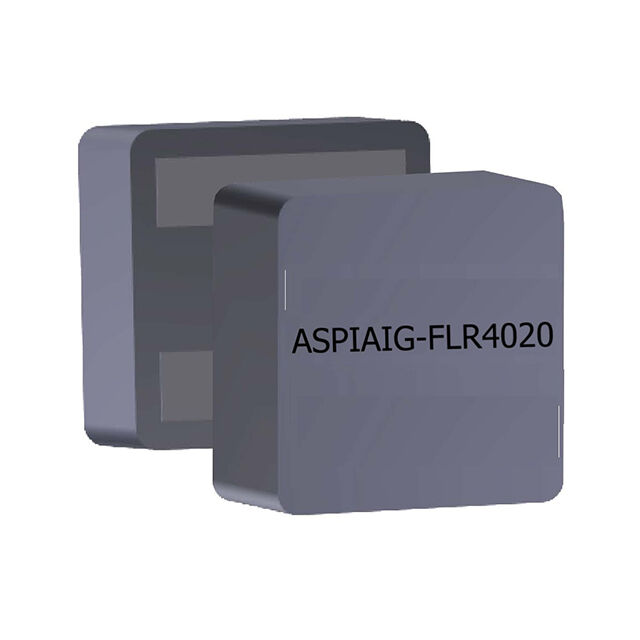

ASPIAIG-FLR4020-R56M-T
ActiveAbracon LLC
IND 0.56UH 11.3A 7.8MOHM
ASPIAIG-FLR4020-R56M-T
ActiveAbracon LLC
IND 0.56UH 11.3A 7.8MOHM
Description
General part information
ASPIAIG-FLR4020-R56M-T
560 nH Shielded Molded Inductor 12.6 A 7.8mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | ASPIAIG-FLR4020-R56M-T |
|---|---|
| Current - Saturation (Isat) | 11.3 A |
| Current Rating | 12.6 A |
| DC Resistance (DCR) (Max) | 7.8 mOhm |
| Height - Seated (Max) | 0.083 in |
| Inductance | 560 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Alloy Powder |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.173 in |
| Size / Dimension Width | 0.173 in |
| Tolerance | 20 % |
| Type | Molded |
