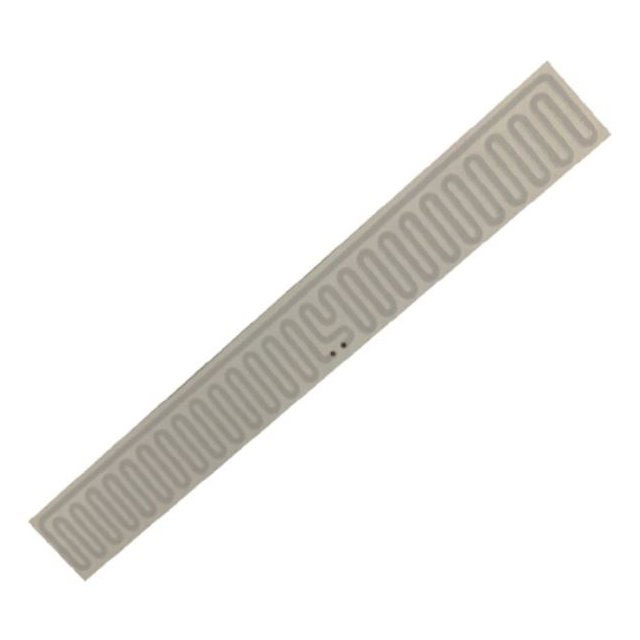

Specification	53-555679

Approval Agency	UL
Attachment Method	Pressure Sensitive Adhesive (PSA)
Color	Off-White
Features	User Selectable Voltage, Leads Potted
Length	10 in
Length - Lead Wire	12 in
Material	Polyester
Material - Insulation	PTFE, Polytetrafluoroethylene
Power (Watts)	60 W
Resistance	2.4 Ohm
Shape	Rectangular
Temperature Rating	250 °F
Termination	Wire Leads
Type	Flexible Heater, Foil
Watt Density	1 W/in²
Width	6 in
Wire Gauge	20 AWG
