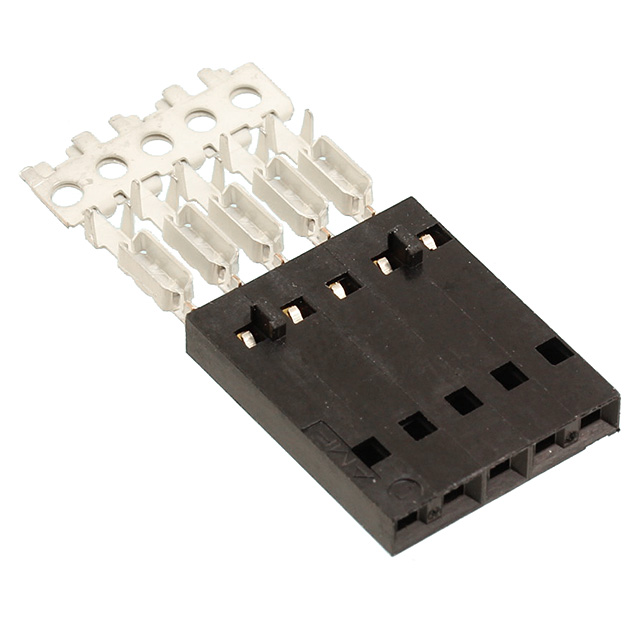

5-103969-4
ActiveTE Connectivity AMP Connectors
CONN RCPT 5POS IDC 22-26AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
5-103969-4
ActiveTE Connectivity AMP Connectors
CONN RCPT 5POS IDC 22-26AWG GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-103969-4 | 103969 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 15 µin | 15 µin |
| Contact Finish Thickness | 0.38 µm | 0.38 µm |
| Contact Type | Female Socket | Female Socket |
| Features | - | Closed End |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | - | 2 - 10 |
| Number of Rows | 1 | 1 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
| Wire Type | Discrete | Discrete, Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.67 | |
| 10 | $ 2.21 | |||
| 25 | $ 2.05 | |||
| 50 | $ 1.94 | |||
| 100 | $ 1.83 | |||
| 250 | $ 1.70 | |||
| 500 | $ 1.61 | |||
| 1000 | $ 1.52 | |||
| 2500 | $ 1.41 | |||
103969 Series
CONN RCPT 6POS IDC 22-26AWG GOLD
| Part | Cable Termination | Number of Positions | Mounting Type | Connector Type | Pitch [x] | Pitch [x] | Contact Type | Contact Finish | Wire Gauge [Min] | Wire Gauge [Max] | Number of Rows | Wire Type | Color | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-103969-5 | IDC | 6 | Free Hanging (In-Line) | Receptacle | 2.54 mm | 0.1 in | Female Socket | Gold | 22 AWG | 26 AWG | 1 | Discrete | Black | 15 µin | 0.38 µm | |
TE Connectivity AMP Connectors 5-103969-1 | IDC | 2 | Free Hanging (In-Line) | Receptacle | 2.54 mm | 0.1 in | Female Socket | Gold | 22 AWG | 26 AWG | 1 | Discrete | Black | 15 µin | 0.38 µm | |
TE Connectivity AMP Connectors 5-103969-2 | IDC | Free Hanging (In-Line) | Receptacle | 2.54 mm | 0.1 in | Female Socket | Gold | 22 AWG | 26 AWG | 1 | Discrete | Black | 15 µin | 0.38 µm | ||
TE Connectivity AMP Connectors 5-103969-4 | IDC | Free Hanging (In-Line) | Receptacle | 2.54 mm | 0.1 in | Female Socket | Gold | 22 AWG | 26 AWG | 1 | Discrete | Black | 15 µin | 0.38 µm | ||
TE Connectivity AMP Connectors 103969-9 | IDC | 10 | Free Hanging (In-Line) | Receptacle | 2.54 mm | 0.1 in | Female Socket | Gold | 22 AWG | 26 AWG | 1 | Ribbon Cable | Black | 15 µin | 0.38 µm | Closed End |
TE Connectivity AMP Connectors 5-103969-3 | IDC | 4 | Free Hanging (In-Line) | Receptacle | 2.54 mm | 0.1 in | Female Socket | Gold | 22 AWG | 26 AWG | 1 | Discrete | Black | 15 µin | 0.38 µm |
Description
General part information
103969 Series
5 Position Rectangular Receptacle Connector IDC Gold 22-26 AWG
Documents
Technical documentation and resources
No documents available
