SQE48T20120-NDABG

Active

Bel Power Solutions

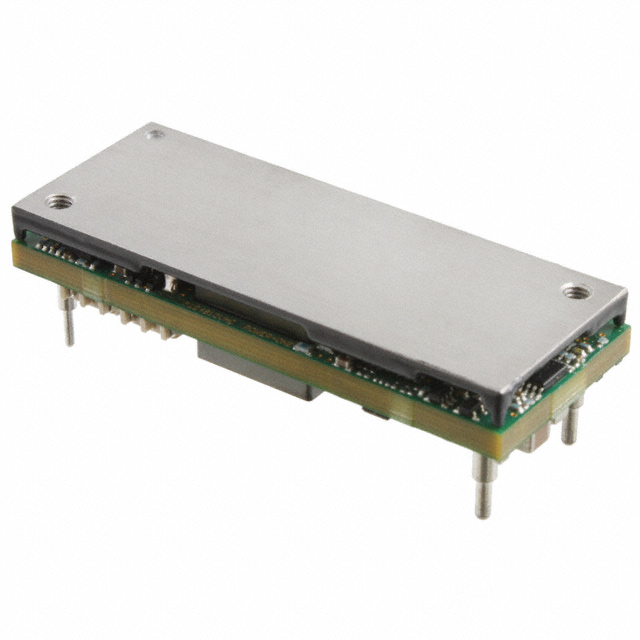

DC DC CONVERTER 12V 240W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 12V 240W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Intermediate Bus Converter DC DC Converter 1 Output 12V 20A 36V - 75V Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	SQE48T20120-NDABG	SQE48T20120 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active Low, Enable	Active Low, Enable
Current - Output (Max) [Max]	20 A	20 A
Efficiency	94.5 %	94.2 - 94.5 %
Features	Remote On/Off, UVLO	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	1/8 Brick, 5-DIP Module	8-DIP Module, 1/8 Brick, 5-DIP Module, Eighth Brick
Power (Watts)	240 W	240 W
Size / Dimension	-	22.9 mm
Size / Dimension	-	58.4 mm
Size / Dimension	-	9.4 mm
Size / Dimension [x]	58.4 mm	2.3 - 58.4 in
Size / Dimension [x]	2.3 in	2.3 in
Size / Dimension [y]	22.9 mm	22.8 - 22.9 mm
Size / Dimension [y]	0.9 "	0.9 "
Size / Dimension [z]	12.7 mm	0.37 - 12.7 in
Size / Dimension [z]	0.5 in	0.44 - 0.5 in
Supplier Device Package	-	Eighth Brick
Type	Intermediate Bus Converter	Intermediate Bus Converter, Isolated Module
Voltage - Input (Max) [Max]	75 V	75 V
Voltage - Input (Min) [Min]	36 V	36 V
Voltage - Isolation	2250 VDC	2250 VDC
Voltage - Output 1	12 V	12 V

DC DC CONVERTER 12V 240W

Part	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Current - Output (Max) [Max]	Power (Watts)	Applications	Voltage - Input (Min) [Min]	Control Features	Type	Voltage - Input (Max) [Max]	Package / Case	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Output 1	Number of Outputs	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package
Bel Power Solutions SQE48T20120-NDB0G	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	0.37 in	22.9 mm	2.3 in	58.4 mm	22.86 mm	9.4 mm	Through Hole	20 A	240 W	ITE (Commercial)	36 V	Active Low, Enable	Intermediate Bus Converter	75 V	1/8 Brick, 8-DIP Module	2250 VDC	85 °C	-40 °C	94.2 %	12 V	1
Bel Power Solutions SQE48T20120-NDABG	Remote On/Off, UVLO	12.7 mm		58.4 mm		22.9 mm		Through Hole	20 A	240 W	ITE (Commercial)	36 V	Active Low, Enable	Intermediate Bus Converter	75 V	1/8 Brick, 5-DIP Module	2250 VDC	85 °C	-40 °C	94.5 %	12 V	1	0.5 in	2.3 in	0.9 "
Bel Power Solutions SQE48T20120-NDB0G-S1	OCP, OTP, OVP, Remote On/Off, UVLO	11.2 mm		58.4 mm		22.8 mm		Through Hole	20 A	240 W	ITE (Commercial)	36 V		Isolated Module	75 V	Eighth Brick	2250 VDC	85 °C	-40 °C	94.2 %	12 V	1	0.44 "	2.3 in	0.9 "	Eighth Brick
Bel Power Solutions SQE48T20120-NDBBG	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	12.7 mm		58.4 mm		22.9 mm		Through Hole	20 A	240 W	ITE (Commercial)	36 V	Active Low, Enable	Intermediate Bus Converter	75 V	1/8 Brick, 8-DIP Module	2250 VDC	85 °C	-40 °C	94.2 %	12 V	1	0.5 in	2.3 in	0.9 "
