MSMLJ78A
ActiveMDE Semiconductor Inc
TVS DIODE UP 78VRWM 126VC
MSMLJ78A
ActiveMDE Semiconductor Inc
TVS DIODE UP 78VRWM 126VC
Description
General part information
MSMLJ78A

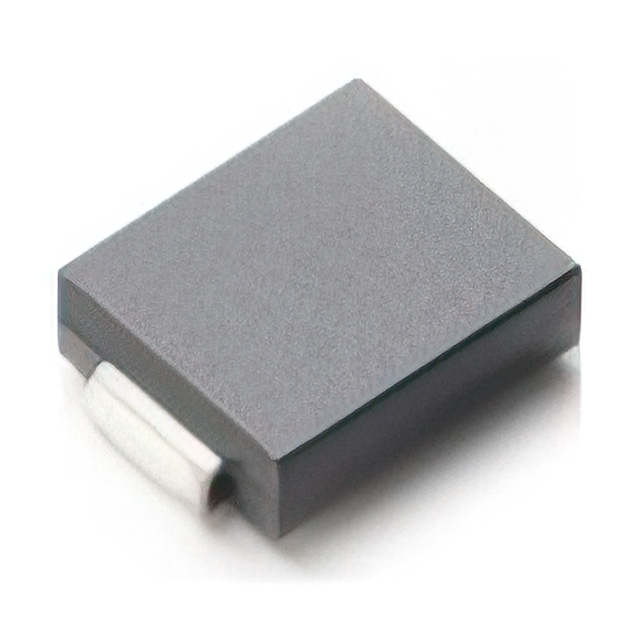

126V Clamp 23.8A Ipp Tvs Diode Surface Mount DO-214AB (SMCJ)
Technical Specifications
Parameters and characteristics for this part
| Specification | MSMLJ78A |
|---|---|
| Applications | General Purpose |
| Current - Peak Pulse | 23.8 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | DO-214AB, SMC |
| Package Name | DO-214AB (SMCJ) |
| Power - Peak Pulse | 3000 W |
| Power Line Protection | No |
| Type | Zener |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 86.7 V |
| Voltage - Clamping (Max) | 126 V |
| Voltage - Reverse Standoff (Typ) | 78 V |
