Description
General part information

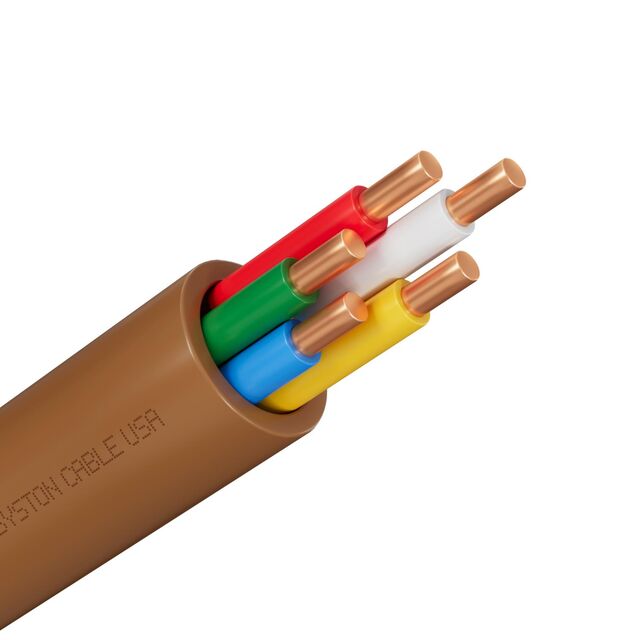

DK-7337-SB-BN-20
5 Conductor Multi-Conductor Cable Brown 18 AWG 20.00' (6.10m)
Technical Specifications
Parameters and characteristics for this part
| Specification | DK-7337-SB-BN-20 |
|---|---|
| Cable Type | Conductor, Multi |
| Conductor Insulation | Polyolefin (PO) |
| Conductor Material | Copper, Bare |
| Features | Flame Retardant, Rip Cord, UV Resistant |
| Jacket (Insulation) Diameter | 0.172 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC), Riser |
| Jacket Color | Brown |
| Length | 20 ft |
| Number of Conductors | 5 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -35 °C |
| Ratings | Riser CMR, UL Style, 1666, Style, UL |
| Usage | Heating Control, Thermostat, Doorbell, HVAC |
| Voltage | 300 V |
| Wire Gauge | 18 AWG |
