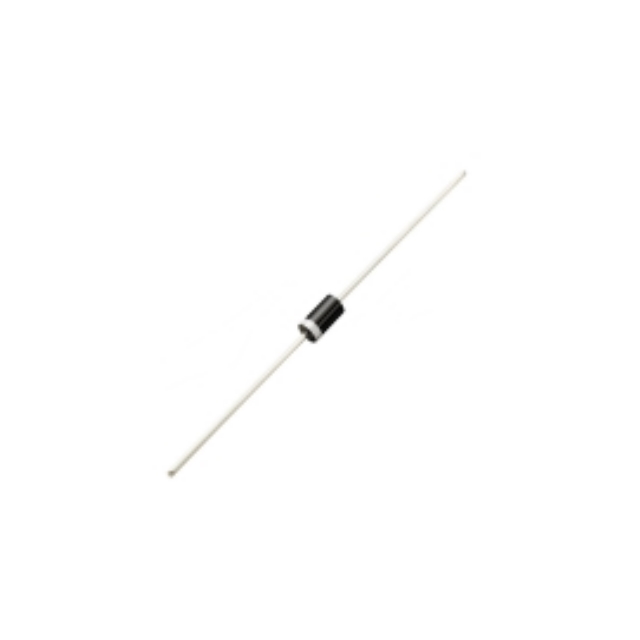

R3000F
ActiveRectron USA
DIODE GEN PURP 3KV 200MA DO15
R3000F
ActiveRectron USA
DIODE GEN PURP 3KV 200MA DO15
Description
General part information
R3000F
Diode 3000 V 200mA Through Hole DO-15
Technical Specifications
Parameters and characteristics for this part
| Specification | R3000F |
|---|---|
| Capacitance | 30 pF |
| Current - Average Rectified (Io) | 200 mA |
| Current - Reverse Leakage | 5 µA |
| Mounting Type | Through Hole |
| Operating Temperature - Junction (Max) | 150 °C |
| Operating Temperature - Junction (Min) | -55 °C |
| Package / Case | DO-204AC, Axial, DO-15 |
| Package Name | DO-15 |
| Reverse Recovery Time (trr) | 500 ns |
| Speed | Any Speed, Small Signal |
| Speed - Fast Recovery (Maximum) | 200 mA |
| Speed - Small Signal Current Max | 200 mA, 200 mA, 200 mA |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 3000 V |
| Voltage - Forward (Vf) (Max) | 5 V |
