HF659/50SF

Active

3M (TC)

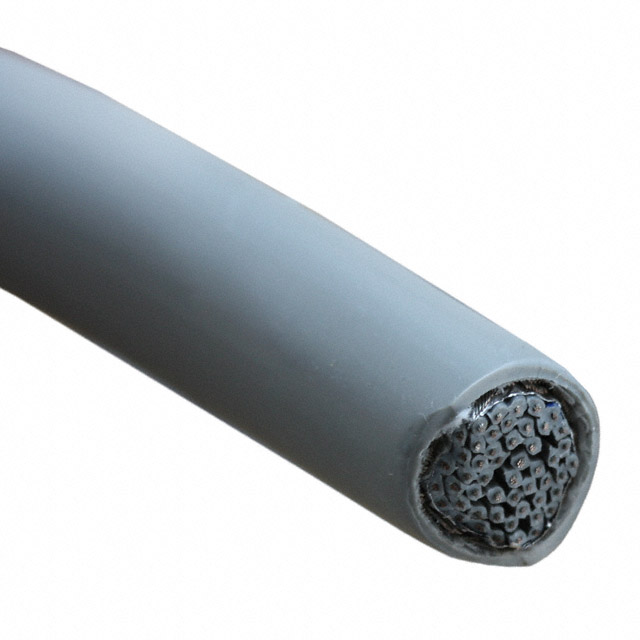

80001241589 HF659/50SF=50/CAB/GRAY/RJFL/SHLD/HF/28AWG/STR/.050/275FT ROLL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HF659/50SF

Active

3M (TC)

80001241589 HF659/50SF=50/CAB/GRAY/RJFL/SHLD/HF/28AWG/STR/.050/275FT ROLL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HF659/50SF

Cable Type	Round Jacket, Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Features	Zippable, Splice Free
First Conductor Mark	Blue
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Polyolefin (PO)
Jacket Color	Gray
Length	83.82 m
Length	275 ft
Number of Conductors	50
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-15 °C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 22170
Ribbon Width	62.23 mm
Ribbon Width	2.45 in
Shielding	Shielded
Voltage	150 V
Wire Gauge	28 AWG

HF659 Series

Part	Features	Jacket Color	Conductor Material	Length	Length	Number of Conductors	Wire Gauge	Ribbon Width	Ribbon Width	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Ratings	Jacket (Insulation) Material	First Conductor Mark	Pitch [x]	Pitch [x]	Insulation Resistance	Length [x]	Length [x]	Shielding	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Ribbon Width [x]	Ribbon Width [x]
3M (TC) HF659/10SF	Splice Free Zippable	Gray	Copper Tinned	7.62 m 15.24 m 83.82 m	25 ft 50 ft 275 ft	10	28 AWG	11.43 mm	0.45 in	7	36 AWG	Flat Cable Round Jacket	UL Style 22170	Polyolefin (PO)	Blue	0.05 in	1.27 mm	10 GOhm	3.05 m 30.48 m	10 ft 100 ft	Shielded	150 V	-15 °C	75 ░C
3M (TC) HF659/50	Zippable	Gray	Copper Tinned	83.82 m	275 ft	50	28 AWG	62.23 mm	2.45 in	7	36 AWG	Flat Cable Round Jacket	UL Style 22170	Polyolefin (PO)	Blue	0.05 in	1.27 mm	10 GOhm			Shielded	150 V	-15 °C	75 ░C
3M (TC) HF659/37SF	Splice Free Zippable	Gray	Copper Tinned	7.62 m 15.24 m 83.82 m	25 ft 50 ft 275 ft	37	28 AWG	45.72 mm	1.8 in	7	36 AWG	Flat Cable Round Jacket	UL Style 22170	Polyolefin (PO)	Blue	0.05 in	1.27 mm	10 GOhm	3.05 m 30.48 m	10 ft 100 ft	Shielded	150 V	-15 °C	75 ░C
3M (TC) HF659/20SF	Splice Free Zippable	Gray	Copper Tinned	83.82 m	275 ft	20	28 AWG	24.13 mm	0.95 "	7	36 AWG	Flat Cable Round Jacket	UL Style 22170	Polyolefin (PO)	Blue	0.05 in	1.27 mm	10 GOhm	30.48 m	100 ft	Shielded	150 V	-15 °C	75 ░C
3M (TC) HF659/10	Zippable	Gray	Copper Tinned	83.82 m	275 ft	10	28 AWG	11.43 mm	0.45 in	7	36 AWG	Flat Cable Round Jacket	UL Style 22170	Polyolefin (PO)	Blue	0.05 in	1.27 mm	10 GOhm			Shielded	150 V	-15 °C	75 ░C
3M (TC) HF659/16SF	Splice Free Zippable	Gray	Copper Tinned	7.62 m 15.24 m	25 ft 50 ft	16	28 AWG	19.05 mm	0.75 "	7	36 AWG	Flat Cable Round Jacket	UL Style 22170	Polyolefin (PO)	Blue	0.05 in	1.27 mm	10 GOhm	3.05 m 30.48 m	10 ft 100 ft	Shielded	150 V	-15 °C	75 ░C
3M (TC) HF659/50SF	Splice Free Zippable	Gray	Copper Tinned	83.82 m	275 ft	50	28 AWG	62.23 mm	2.45 in	7	36 AWG	Flat Cable Round Jacket	UL Style 22170	Polyolefin (PO)	Blue	0.05 in	1.27 mm	10 GOhm			Shielded	150 V	-15 °C	75 ░C
3M (TC) HF659/60	Zippable	Gray	Copper Tinned	83.82 m	275 ft	60	28 AWG	74.93 mm		7	36 AWG	Flat Cable Round Jacket	UL Style 22170	Polyolefin (PO)	Blue	0.05 in	1.27 mm	10 GOhm			Shielded	150 V	-15 °C	75 ░C	2.95 in
3M (TC) HF659/26SF	Splice Free Zippable	Gray	Copper Tinned	7.62 m 15.24 m	25 ft 50 ft	26	28 AWG			7	36 AWG	Flat Cable Round Jacket	UL Style 22170	Polyolefin (PO)	Blue	0.05 in	1.27 mm	10 GOhm	3.05 m	10 ft	Shielded	150 V	-15 °C	75 ░C	1.25 "	31.75 mm
3M (TC) HF659/34SF	Splice Free Zippable	Gray	Copper Tinned	83.82 m	275 ft	34	28 AWG	41.91 mm	1.65 "	7	36 AWG	Flat Cable Round Jacket	UL Style 22170	Polyolefin (PO)	Blue	0.05 in	1.27 mm	10 GOhm			Shielded	150 V	-15 °C	75 ░C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1650	$ 4.35
Newark	Spool of 275	5	$ 1454.48
		10	$ 1399.24
		25	$ 1371.63

Description

General part information

HF659 Series

Flat Ribbon Cable Gray 50 Conductors 0.050" (1.27mm) Flat Cable, Round Jacket 275.0' (83.82m)
