8STR-03-006

Active

TE Connectivity AMP Connectors

CONN BARRIER STRIP 3CIRC 0.438"

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN BARRIER STRIP 3CIRC 0.438"

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

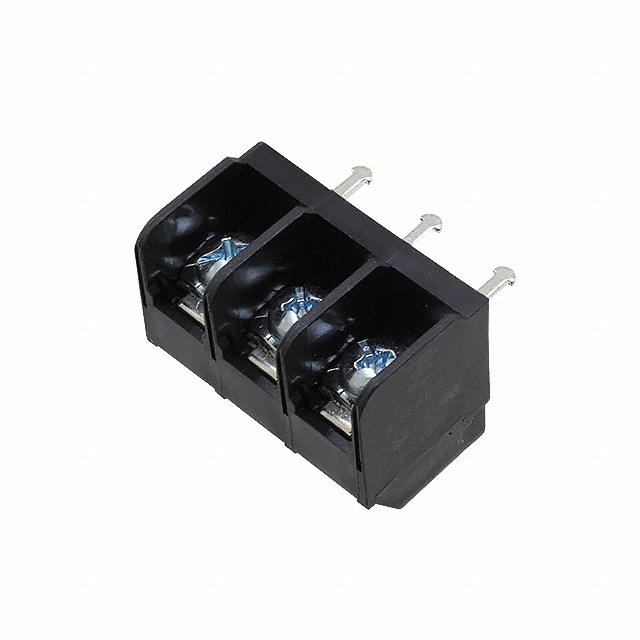

3 Circuit 0.438" (11.12mm) Barrier Block Connector Screws with Captive Plate

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	8STR-03-006	8STR Series

Barrier Type	3 Wall (Tri)	3 Wall (Tri)
Bottom Termination	Solder Turret	Solder Turret
Color	Black	Black
Current Rating (Amps)	30 A	30 A
Features	Flange	Flange
Material - Insulation	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	3	2 - 10
Number of Rows	1	1
Number of Wire Entries	3	2 - 10
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	11.12 mm	11.12 mm
Pitch [x]	0.438 in	0.438 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Finish	Zinc	Zinc
Terminal Screw Material	Steel	Steel
Top Termination	Screws with Captive Plate	Screws with Captive Plate
Voltage Rating	600 V	600 V
Wire Gauge [Max]	18 AWG	18 AWG
Wire Gauge [Min]	10 AWG	10 AWG

CONN BARRIER STRP 10CIRC 0.438"

Part	Mounting Type	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Material Flammability Rating	Features	Current Rating (Amps)	Barrier Type	Terminal Screw Material	Number of Circuits	Terminal Block Type	Color	Bottom Termination	Number of Rows	Voltage Rating	Terminal Screw Finish	Top Termination	Number of Wire Entries	Wire Gauge [Min]	Wire Gauge [Max]
TE Connectivity AMP Connectors 8STR-10-008	Chassis, Panel	Thermoplastic	-40 °C	120 °C	11.12 mm	0.438 in	UL94 V-0	Flange	30 A	3 Wall (Tri)	Steel	10	Barrier Block	Black	Solder Turret	1	600 V	Zinc	Screws with Captive Plate	10	10 AWG	18 AWG
TE Connectivity AMP Connectors 8STR-04-006	Chassis, Panel	Thermoplastic	-40 °C	120 °C	11.12 mm	0.438 in	UL94 V-0	Flange	30 A	3 Wall (Tri)	Steel	4	Barrier Block	Black	Solder Turret	1	600 V	Zinc	Screws with Captive Plate	4	10 AWG	18 AWG
TE Connectivity AMP Connectors 8STR-03-008	Chassis, Panel	Thermoplastic	-40 °C	120 °C	11.12 mm	0.438 in	UL94 V-0	Flange	30 A	3 Wall (Tri)	Steel	3	Barrier Block	Black	Solder Turret	1	600 V	Zinc	Screws with Captive Plate	3	10 AWG	18 AWG
TE Connectivity AMP Connectors 8STR-03-006	Chassis, Panel	Thermoplastic	-40 °C	120 °C	11.12 mm	0.438 in	UL94 V-0	Flange	30 A	3 Wall (Tri)	Steel	3	Barrier Block	Black	Solder Turret	1	600 V	Zinc	Screws with Captive Plate	3	10 AWG	18 AWG
TE Connectivity AMP Connectors 8STR-02-006	Chassis, Panel	Thermoplastic	-40 °C	120 °C	11.12 mm	0.438 in	UL94 V-0	Flange	30 A	3 Wall (Tri)	Steel	2	Barrier Block	Black	Solder Turret	1	600 V	Zinc	Screws with Captive Plate	2	10 AWG	18 AWG
