FMDP1004
ActiveFairview Microwave

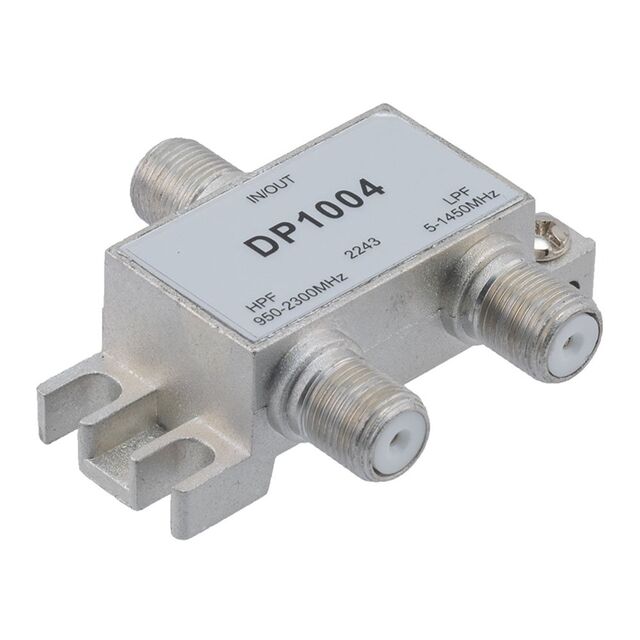

75 OHM DIPLEXER, 5 TO 1450 MHZ L
FMDP1004
ActiveFairview Microwave
75 OHM DIPLEXER, 5 TO 1450 MHZ L
Description
General part information
FMDP1004
RF Diplexer 5MHz ~ 1.45GHz / 1.65GHz ~ 2.3GHz Module
Technical Specifications
Parameters and characteristics for this part
| Specification | FMDP1004 |
|---|---|
| Frequency Bands (High) Maximum | 2.3 GHz |
| Frequency Bands (High) Minimum | 1.65 GHz |
| Frequency Bands (Low) Maximum | 1.45 GHz |
| Frequency Bands (Low) Minimum | 5 MHz |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Return Loss (High Band) | 10 dB |
| Return Loss (Low Band) | 10 dB |
| Type | Diplexer |
