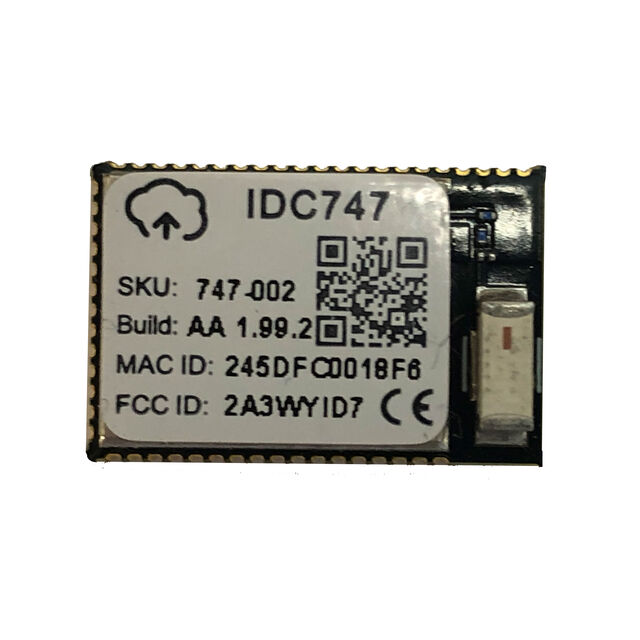

IDC747-1

IOT747

RF TXRX MOD BLUETOOTH CHIP SMD

Search across all available documentation for this part.

IOT747

RF TXRX MOD BLUETOOTH CHIP SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IDC747-1	IDC747 Series

Antenna Type	Integrated, Chip	Integrated, Chip
Data Rate	3 Mbps	3 Mbps
For Use With/Related Products	-	IDC747-1
Frequency	2.4 GHz	2.4 GHz
Modulation	DQPSK, GFSK, DPSK	DQPSK, GFSK, DPSK
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	51-SMD Module	51-SMD Module
Power - Output	13 dBm	13 dBm
Protocol	Bluetooth v5.2	Bluetooth v5.2
RF Family/Standard	Bluetooth	Bluetooth
Serial Interfaces	I2C, AIO, I2S, USB, UART, GPIO, PCM	I2C, AIO, I2S, USB, UART, GPIO, PCM
Supplied Contents	-	Board(s)
Type	-	Transceiver, Bluetooth® 5.x (BLE)
Voltage - Supply [Max]	4.7 V	4.7 V
Voltage - Supply [Min]	3.3 V	3.3 V

IDC747 DEVELOPMENT KIT

Part	Supplied Contents	For Use With/Related Products	Type	Frequency	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate	Antenna Type	Power - Output	Voltage - Supply [Max]	Voltage - Supply [Min]	Protocol	RF Family/Standard	Mounting Type	Modulation	Serial Interfaces
IOT747 IDC747-1-DK	Board(s)	IDC747-1	Bluetooth® 5.x (BLE), Transceiver	2.4 GHz
IOT747 IDC747-1				2.4 GHz	51-SMD Module	85 °C	-40 °C	3 Mbps	Integrated, Chip	13 dBm	4.7 V	3.3 V	Bluetooth v5.2	Bluetooth	Surface Mount	DPSK, DQPSK, GFSK	AIO, GPIO, I2C, I2S, PCM, UART, USB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 25.81
	Digi-Reel®	1	$ 25.81
	Tape & Reel (TR)	1000	$ 14.50

General part information

Bluetooth Bluetooth v5.2 Transceiver Module 2.4GHz Integrated, Chip Surface Mount
