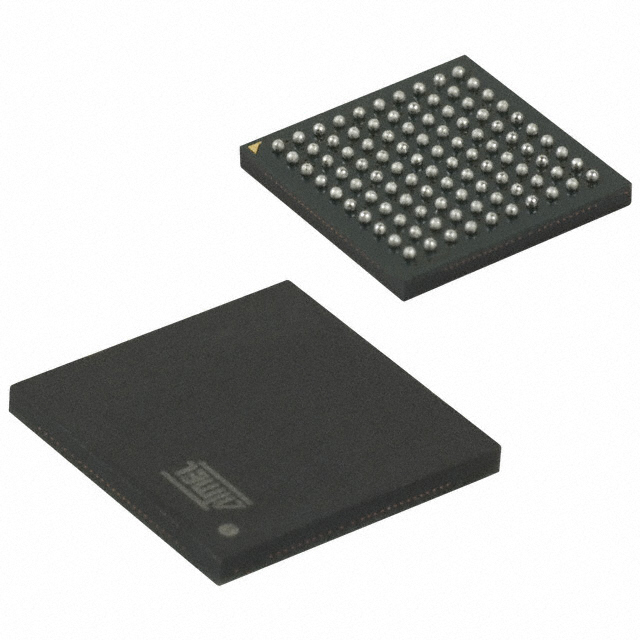

ATSAMV71N21B-CBT
ActiveARM MCU, SAM 32 FAMILY SAM V71 SERIES MICROCONTROLLERS, ARM CORTEX-M7, 32 BIT, 300 MHZ, 2 MB
Deep-Dive with AI
Search across all available documentation for this part.
ATSAMV71N21B-CBT
ActiveARM MCU, SAM 32 FAMILY SAM V71 SERIES MICROCONTROLLERS, ARM CORTEX-M7, 32 BIT, 300 MHZ, 2 MB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ATSAMV71N21B-CBT | ATSAMV71N21 Series |
|---|---|---|
| Connectivity | LINbus, CANbus, SPI, IrDA, USB, MMC/SD/SDIO, I2C, SSC, UART/USART, QSPI, Ethernet | LINbus, CANbus, SPI, IrDA, USB, MMC/SD/SDIO, I2C, SSC, UART/USART, QSPI, Ethernet |
| Core Processor | ARM® Cortex®-M7 | ARM® Cortex®-M7 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core |
| Data Converters | A/D 10x12b, D/A 2x12b | A/D 10x12b, D/A 2x12b |
| Grade | Automotive | Automotive |
| Mounting Type | Surface Mount | Surface Mount |
| Number of I/O | 75 I/O | 75 I/O |
| Operating Temperature [Max] | 105 °C | 105 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Oscillator Type | Internal | Internal |
| Package / Case | - | 100-LQFP |
| Peripherals | Brown-out Detect/Reset, DMA, POR, WDT, PWM, I2S | Brown-out Detect/Reset, DMA, POR, WDT, PWM, I2S |
| Program Memory Size | 2 MB | 2 MB |
| Program Memory Type | FLASH | FLASH |
| Qualification | AEC-Q100 | AEC-Q100 |
| RAM Size | 384 K | 384 K |
| Speed | 300 MHz | 300 MHz |
| Supplier Device Package | 100-TFBGA (9x9) | 100-TFBGA (9x9), 100-LQFP (14x14) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 18.66 | |
| 25 | $ 17.10 | |||
| 100 | $ 15.49 | |||
| Digi-Reel® | 1 | $ 18.66 | ||
| 25 | $ 17.10 | |||
| 100 | $ 15.49 | |||
| Tape & Reel (TR) | 2000 | $ 15.49 | ||
| Microchip Direct | T/R | 1 | $ 18.66 | |
| 25 | $ 17.10 | |||
| 100 | $ 15.49 | |||
| 1000 | $ 14.24 | |||
| 5000 | $ 13.56 | |||
| Newark | Each (Supplied on Full Reel) | 2000 | $ 15.96 | |
ATSAMV71N21 Series
ARM MCU, SAM 32 FAMILY SAM V71 SERIES MICROCONTROLLERS, ARM CORTEX-M7, 32 BIT, 300 MHZ, 2 MB
| Part | Peripherals | Core Processor | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Data Converters | Oscillator Type | Speed | Qualification | RAM Size | Program Memory Size | Core Size | Grade | Connectivity | Number of I/O | Mounting Type | Program Memory Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology ATSAMV71N21B-CBT | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | ARM® Cortex®-M7 | 105 °C | -40 °C | 100-TFBGA (9x9) | A/D 10x12b, D/A 2x12b | Internal | 300 MHz | AEC-Q100 | 384 K | 2 MB | 32-Bit Single-Core | Automotive | CANbus, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, SSC, UART/USART, USB | 75 I/O | Surface Mount | FLASH | |
Microchip Technology ATSAMV71N21B-AABT | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | ARM® Cortex®-M7 | 105 °C | -40 °C | 100-LQFP (14x14) | A/D 10x12b, D/A 2x12b | Internal | 300 MHz | AEC-Q100 | 384 K | 2 MB | 32-Bit Single-Core | Automotive | CANbus, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, SSC, UART/USART, USB | 75 I/O | Surface Mount | FLASH | 100-LQFP |
Microchip Technology ATSAMV71N21B-AAB | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | ARM® Cortex®-M7 | 105 °C | -40 °C | 100-LQFP (14x14) | A/D 10x12b, D/A 2x12b | Internal | 300 MHz | AEC-Q100 | 384 K | 2 MB | 32-Bit Single-Core | Automotive | CANbus, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, SSC, UART/USART, USB | 75 I/O | Surface Mount | FLASH | 100-LQFP |
Description
General part information
ATSAMV71N21 Series
The Microchip SAM V71 devices are a family of Automotive Flash microcontrollers based on the high-performance 32-bit ARM Cortex-M7 processor with a Double Precision Floating Point Unit (FPU). These devices operate at up to 300MHz and feature up to 2048 Kbytes of Flash, and up to 384 Kbytes of multi-port SRAM which is configurable Instruction and Data Tightly Couple Memories to leverage the advanced DSP capabilities of the core.
The SAM V71 series includes a 10/100 Ethernet MAC w/IEEE1588, HS USB Interface with integrated PHY, dual CAN-FD, QSPI, MediaLB, CMOS Imager interface, TDM/I2S (SSC,) multiple serial interfaces as well as on-board hardware cryptography including a TRNG, AES-256, and SHA-256 engines.
Supported by MPLAB X IDE and [MPLAB Harmony](https://www.microchip.com/en-us/tools-resources/configure/mplab-harmony).
