EEG.2K.304.CYM

Active

LEMO

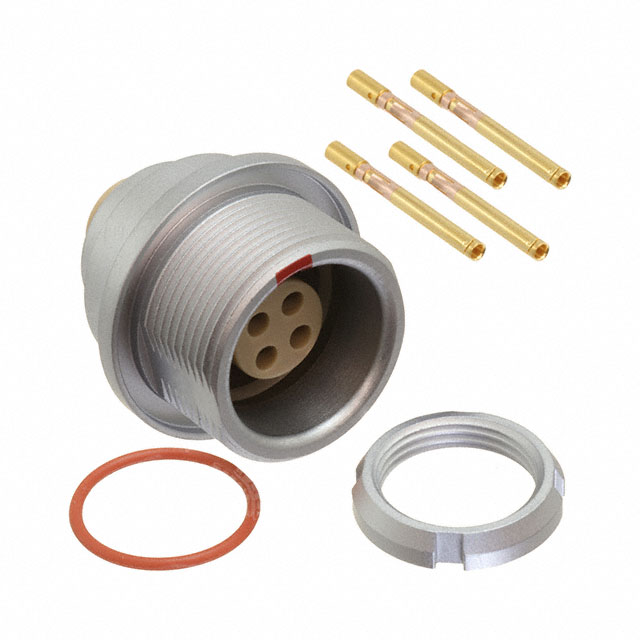

CONN RCPT FMALE 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EEG.2K.304.CYM

Active

LEMO

CONN RCPT FMALE 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 60.92
		10	$ 55.90
		25	$ 53.75
		50	$ 51.96
		100	$ 49.09

Description

General part information

EEG.2K Series

4 Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EEG.2K.304.CYM	EEG.2K Series

Body Finish	-	Chrome
Body Material	-	Brass
Cable Group	-	RG-178B, 196A
Center Contact Plating	-	Gold
Color	Silver	Silver
Connector Style	-	Coaxial
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Receptacle, Female Socket
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Contact Termination	-	Solder
Current Rating (Amps)	15 A	2 - 25 A
Dielectric Material	-	Polyetheretherketone (PEEK)
Fastening Type	Push-Pull	Push-Pull
Housing Color	-	Silver
Impedance	-	50 Ohms
Ingress Protection	IP66/IP68	IP66/IP68, IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	-	5000
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	-	Through Hole, Panel Mount, Right Angle, Free Hanging (In-Line)
Number of Ports	-	1
Number of Positions	4	2 - 26
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	304	302 - 326
Shield Termination	-	Crimp
Shielding	Shielded	Shielded
Termination	Crimp	Solder, Crimp
