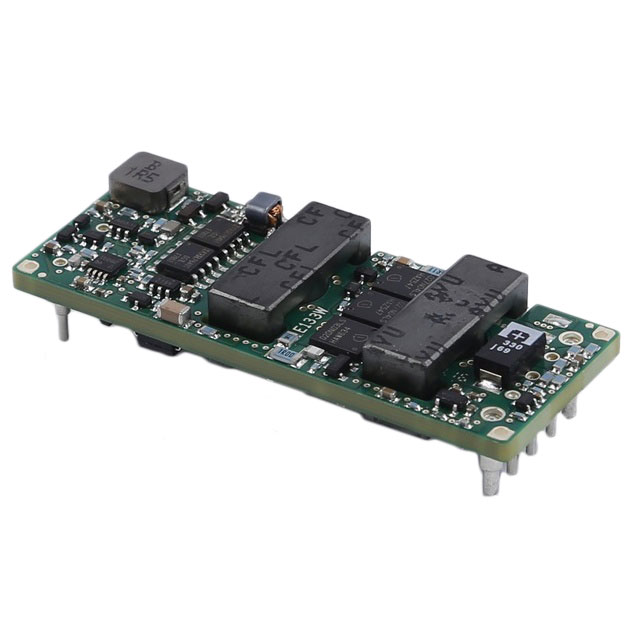

ERS4033N025N20

Obsolete

NetPower

DC DC CONVERTER 3.3V 83W

Search across all available documentation for this part.

Obsolete

NetPower

DC DC CONVERTER 3.3V 83W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ERS4033N025N20	ERS4033 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE, cURus	CE, cURus
Control Features	Active Low, Enable	Active Low, Enable
Current - Output (Max) [Max]	25 A	25 - 30 A
Efficiency	90.5 %	90.5 - 91.5 %
Features	Remote On/Off, Adjustable Output, Remote Sense	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Eighth Brick	Eighth Brick
Power (Watts)	83 W	83 - 99 W
Size / Dimension [x]	58.4 mm	58.4 mm
Size / Dimension [x]	2.3 in	2.3 in
Size / Dimension [y]	0.9 "	0.9 "
Size / Dimension [y]	22.8 mm	22.8 mm
Size / Dimension [z]	9.4 mm	9.4 mm
Size / Dimension [z]	0.37 in	0.37 in
Supplier Device Package	Eighth Brick	Eighth Brick
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	75 V	75 V
Voltage - Input (Min) [Min]	36 V	36 V
Voltage - Isolation	2250 VDC	2250 VDC
Voltage - Output 1	3.3 V	3.3 V

DC DC CONVERTER 3.3V 99W

Part	Applications	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Supplier Device Package	Voltage - Isolation	Voltage - Input (Max) [Max]	Type	Current - Output (Max) [Max]	Number of Outputs	Package / Case	Efficiency	Power (Watts)	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Control Features	Features	Approval Agency
NetPower ERS4033N030N25	ITE (Commercial)	36 V	85 °C	-40 °C	Through Hole	Eighth Brick	2250 VDC	75 V	Isolated Module	30 A	1	Eighth Brick	91.5 %	99 W	3.3 V	9.4 mm	0.9 "	0.37 in	58.4 mm	22.8 mm	2.3 in	Active Low, Enable
NetPower ERS4033N025N20	ITE (Commercial)	36 V	85 °C	-40 °C	Through Hole	Eighth Brick	2250 VDC	75 V	Isolated Module	25 A	1	Eighth Brick	90.5 %	83 W	3.3 V	9.4 mm	0.9 "	0.37 in	58.4 mm	22.8 mm	2.3 in	Active Low, Enable	Adjustable Output, Remote On/Off, Remote Sense	CE, cURus

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 3.3V 25A 36V - 75V Input
