C016 10E014 004 2

Active

Amphenol Tuchel Industrial

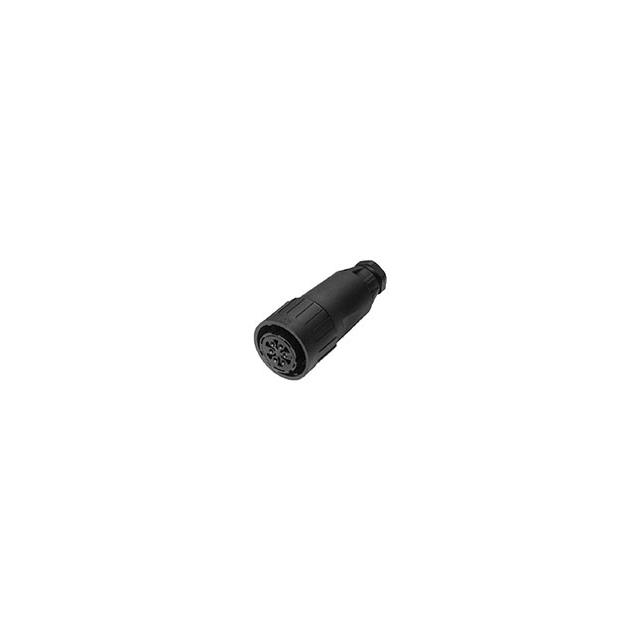

CONN PLG HSG FMALE 15POS INLINE

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLG HSG FMALE 15POS INLINE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 37.01

General part information

15 (14 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	C016 10E014 004 2	C016 10E014 Series

Connector Type	Plug Housing	Plug Housing
Contact Shape	Circular	Circular
Contact Size	1.5 mm, 1.6 mm	1.5 - 1.6 mm
Contact Type	Crimp	Crimp
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Coupling Nut, Backshell	Cable Clamp, Coupling Nut, Backshell
Housing Color	Black	Black
Includes	1 Washer, 2 Screws, 1 Backshell, 1 Gasket, 1 Connector, 2 pc Cable Clamp, 1 Cable Nut	1 Washer, 2 Screws, 1 Backshell, 1 Gasket, 1 Connector, 2 pc Cable Clamp, 1 Cable Nut
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	15	15
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	N	N
Shell Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	2	2
Shielding	Unshielded	Unshielded
Type	For Female Sockets	For Female Sockets

CONN PLG HSG FMALE 15POS INLINE

Part	Ingress Protection	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Includes	Fastening Type	Contact Type	Material Flammability Rating	Shell Size - Insert	Connector Type	Contact Size	Contact Shape	Type	Features	Shielding	Mounting Type	Shell Material	Number of Positions	Note
Amphenol Tuchel Industrial C016 10E014 005 2	IP65 - Dust Tight, Water Resistant	Black	125 °C	-40 °C	N	1 Backshell, 1 Cable Nut, 1 Connector, 1 Gasket, 1 Washer, 2 pc Cable Clamp, 2 Screws	Bayonet Lock	Crimp	UL94 V-0	2	Plug Housing	1.5 mm, 1.6 mm	Circular	For Female Sockets	Backshell, Cable Clamp, Coupling Nut	Unshielded	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	15	Contacts Not Included
Amphenol Tuchel Industrial C016 10E014 004 2	IP65 - Dust Tight, Water Resistant	Black	125 °C	-40 °C	N	1 Backshell, 1 Cable Nut, 1 Connector, 1 Gasket, 1 Washer, 2 pc Cable Clamp, 2 Screws	Bayonet Lock	Crimp	UL94 V-0	2	Plug Housing	1.5 mm, 1.6 mm	Circular	For Female Sockets	Backshell, Cable Clamp, Coupling Nut	Unshielded	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	15	Contacts Not Included
