5317505

Active

Winchester Interconnect

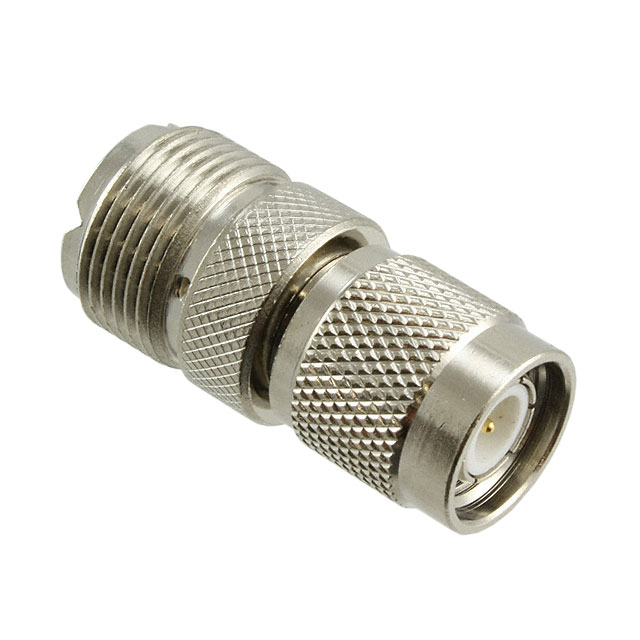

COAX ADAPT TNC TO UHF

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5317505

Active

Winchester Interconnect

COAX ADAPT TNC TO UHF

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5317505	- Series

	-	-
Accessory Type	-	Nut, Knurled
Adapter Series	TNC to UHF	BNC to SMA, Mini, Mini to UHF, UHF, BNC to TNC, F to F, TNC to UHF
Adapter Type	Plug to Jack	Plug to Jack, Plug to Plug
Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Center Contact Material	Brass	Brass, Phosphor Bronze
Center Contact Plating	Gold	Gold
Center Gender	-	Male to Male
Color	-	Silver
Connector Style	-	BNC, SMA
Connector Type	-	Female Socket, Jack
Contact Termination	-	Solder Cup, Solder
Conversion Type	Between Series	Between Series, Same Series
Convert From (Adapter End)	-	SMA Plug, Male Pin, BNC Plug, Male Pin, UHF Mini Plug, Male Pin, F Plug, Male Pin, N Plug, Male Pin
Convert To (Adapter End)	UHF Jack, Female Socket	Female Socket, N Jack, SMA Plug, Male Pin, UHF Mini Jack, TNC Jack, F Plug, UHF Jack
Dielectric Material	-	Polytetrafluoroethylene (PTFE), Polypropylene (PP)
Fastening Type	-	Bayonet Lock, Threaded
Features	-	Isolated, Board Guide
For Use With/Related Products	-	BNC Jacks, V-Bite® Series
Frequency - Max [Max]	1 GHz	1 - 500 GHz
Housing Color	-	Silver, White
Impedance	50 Ohms	50 - 75 Ohms
Impedance	-	Non-Constant
Ingress Protection	-	Weatherproof
Insertion Loss	-	0.2 dB
Mating Cycles	-	500
Mounting Feature	-	Flange, Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Through Hole, Right Angle, Panel Mount
Number of Ports	-	1
Operating Temperature [Max]	100 °C	100 - 165 °C
Operating Temperature [Min]	-55 °C	-65 - -40 ░C
Shield Termination	-	Solder
Style	Straight	Straight, Right Angle
Voltage Rating	-	500 V

- Series

CONN KNURLED NUT FOR BNC JACKS

Part	Body Material	Connector Style	For Use With/Related Products	Color	Body Finish	Accessory Type	Mounting Type	Center Contact Plating	Convert To (Adapter End)	Style	Conversion Type	Convert From (Adapter End)	Dielectric Material	Adapter Type	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Impedance	Number of Ports	Frequency - Max [Max]	Mounting Feature	Contact Termination	Connector Type	Shield Termination	Mating Cycles	Voltage Rating	Insertion Loss	Ingress Protection	Fastening Type	Features	Adapter Series	Center Gender	Impedance
Winchester Interconnect 364KNT	Brass	BNC	BNC Jacks	Silver	Nickel	Knurled, Nut
Winchester Interconnect 9311505	Brass				Nickel		Free Hanging (In-Line)	Gold	Female Socket, N Jack	Straight	Between Series	SMA Plug, Male Pin	Polytetrafluoroethylene (PTFE)	Plug to Jack	Brass
Winchester Interconnect 917A524	Brass	SMA			Nickel			Gold					Polytetrafluoroethylene (PTFE)		Brass	-65 ░C	165 °C	Silver	50 Ohms	1	12.5 GHz	Flange	Solder Cup	Female Socket, Jack	Solder	500
Winchester Interconnect 364A795	Brass	BNC			Nickel		Panel Mount, Right Angle, Through Hole	Gold					Polypropylene (PP)		Phosphor Bronze	-40 °C	165 °C	Silver, White	75 Ohms	1	1 GHz	Bulkhead - Front Side Nut	Solder	Female Socket, Jack	Solder	500	500 V	0.2 dB	Weatherproof	Bayonet Lock	Board Guide, Isolated
Winchester Interconnect 361KNT	Brass	BNC	V-Bite® Series	Silver	Nickel	Knurled, Nut
Winchester Interconnect KC-79-238-M06
Winchester Interconnect 3309505	Brass				Nickel		Free Hanging (In-Line)	Gold	Male Pin, SMA Plug	Straight	Between Series	BNC Plug, Male Pin		Plug to Plug	Brass	-55 °C	100 °C		50 Ohms		1 GHz									Bayonet Lock, Threaded		BNC to SMA	Male to Male
Winchester Interconnect 651A505	Brass				Nickel		Free Hanging (In-Line), Right Angle	Gold	Female Socket, UHF Mini Jack	Right Angle	Same Series	UHF Mini Plug, Male Pin		Plug to Jack	Brass, Phosphor Bronze						2 GHz					500						Mini, Mini to UHF, UHF		Non-Constant
Winchester Interconnect 3315505	Brass				Nickel		Free Hanging (In-Line)	Gold	Female Socket, TNC Jack	Straight	Between Series	BNC Plug, Male Pin		Plug to Jack	Brass	-55 °C	100 °C		50 Ohms		1 GHz									Bayonet Lock, Threaded		BNC to TNC
Winchester Interconnect 830A509	Brass				Nickel		Free Hanging (In-Line)		F Plug, Male Pin	Straight	Same Series	F Plug, Male Pin	Polypropylene (PP)	Plug to Plug	Brass						500 MHz											F to F	Male to Male	Non-Constant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

- Series

Adapter Coaxial Connector TNC Plug, Male Pin To UHF Jack, Female Socket 50 Ohms
